G Rail 4800 Heavy Duty Hand Drawn Curtain Track
The G Rail 4800 is a flexible aluminium curtain track for hand-drawn installations, suitable for light to heavyweight curtains. It supports either gliders or roller runners (optional), and can be top fixed or face fixed depending on bracket choice.
Simple Installation
Top fix or wall fix
Heavy Duty
Up to 80kg
Made to Measure
Configured to your size
Aluminium Profile
Supplied with standard gliders
Hand Drawn
Pull across by hand
Complete Kit
Everything for one installation
Expectation setting: This is a hand-drawn track (not corded and not baton operated in the supplied information). Track bending is available using the stated tooling and radii. For suspended ceilings, the benefit is wider bracket spacing where bridging is required.
Overview of the G Rail 4800 track system
The 4800 is a flexible aluminium track suitable for light to heavyweight curtains, with the optional use of gliders or rollers. Standard components included are the 4010 gliders and 5350 or 5351 brackets depending on whether top fixed or face fixed.
The strength of the system allows a greater distance between fixing bracket centres. This is beneficial where special clips are used to fix to a suspended ceiling grid and standard width ceiling tiles have to be bridged.
The track can be used with suspended ceilings (see product images for an example of the installation context).
Where this fits in our range
Choose the G Rail 4800 when you need a heavy duty hand-drawn track and the flexibility to specify gliders or roller runners. It is particularly relevant where bracket spacing and suspended ceiling fixing considerations are part of the install.
Best suited for
- Light to heavyweight curtain installations where a hand-drawn operation is preferred.
- Projects that need either standard gliders for quieter operation or roller runners (optional).
- Installations involving suspended ceilings where increased bracket spacing is beneficial.
Benefits of the G Rail 4800
- Suitable for a wide range of curtain weights.
- Aluminium track; can be forward or reverse bent in different radii.
- Wall or ceiling mounting (bracket dependent).
- Available as standard in white or anodised aluminium.
- Plastic gliders for quieter operation (glider option).
- Complete kits with everything to install to one window.
Who uses the G Rail 4800
Used in domestic and contract environments, including hotel bedrooms, care homes and schools, as well as surround curtain installations (mid weight) and decorative exhibition curtain tracks.
Contract applications
A practical option where a heavier duty hand-drawn track is required and a robust aluminium profile is preferred.
Suspended ceiling installs
Selected where increased bracket spacing helps when bridging standard ceiling tiles using special clips on a ceiling grid.
Specifications and components
Certificates, installation guidance and any downloadable technical documents are provided in the Specification tab where available.
| Track type | Hand drawn aluminium track |
| Fixing options | Top fix or face/wall fix (bracket dependent) |
| Standard gliders | 4010 gliders (included as standard) |
| Brackets | 5350 or 5351 brackets (depending on top fix / face fix) |
| Runner options | Gliders or roller runners (roller runners optional) |
| Colours / finishes | White or anodised aluminium (standard) |
| Weight capacity | Up to 80kg (as stated) |
Main components of the 4800 curtain track
White curtain profile
Silver curtain track profile
Dimensions of curtain track
Brackets and runner options for the 4800

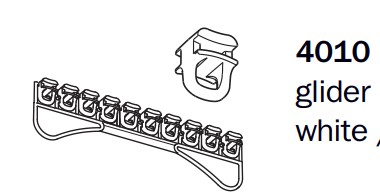

Standard gliders
Roller runners (option)

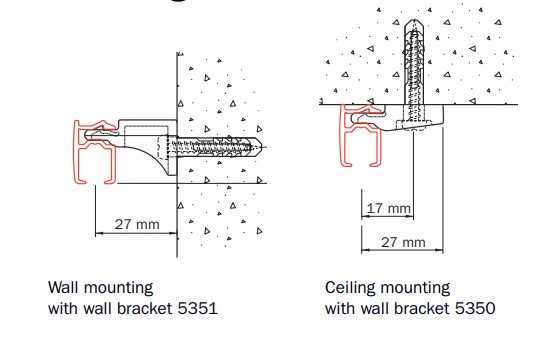

Ceiling or wall mounted (bracket dependent)
Bending
The 4800 can be forward or reverse bent to create attractive returns.
| Minimum bending radius | 10cm with bending tool 1012 |
| Standard bending radius | 10cm with bending tool 1012 or 1015 |
| Other bending radii | Greater than 80cm with bending tool 1018 |
Bespoke quoting support
Our team can help with measurements and track selection for your project. If you’re unsure on specification or configuration, contact us and we’ll help you select the most suitable track setup.
To order made to measure curtain tracks from Direct Fabrics, enter your details in the options above and purchase through the website, or request a quote by email with your measurements and requirements.
| Weight Guide | Stage 40kg+ |
|---|---|
| Delivery | 2 Weeks or Less - Manufactured to Order |
| Operation | Hand |
How to Install Curtain Rails & Blinds into Plaster Board
How to Calculate Curtain Weight?
Customer Product Reviews
Top customer reviews
-
Excellent service.Excellent service. Immediate turnaround of orders and options to meet all needs. Thank you0 people found this helpful
-
Ordered the parts I needed and they arrived the following day. Nice chat with the sales lady. Great serviceOrdered the parts I needed and they arrived the following day. Nice chat with the sales lady. Great service0 people found this helpful
-
I will definitely use them againFirst time I've used Direct Fabrics, & I will definitely use them again. Good choice of products, easy to navigate website, great delivery & excellent customer service.0 people found this helpful
-
4 x 3m TracksCheerful and helpful customer service0 people found this helpful
-
Excellent company to deal with.Excellent company to deal with. Ordered an extra long rail and it came damaged and within a week had it replaced. They were friendly helpfu efficientl and did what they said. Thankyou team0 people found this helpful
-
Curtain RailThe curtain rail was exactly as described, supplied to the bespoke length and delivered promptly.0 people found this helpful
-
Easy to orderEasy to order, very fast dleivery, great service.0 people found this helpful
-
Always a pleasure dealing with the team at Direct FabricsAlways a pleasure dealing with the team at Direct Fabrics0 people found this helpful
-
Very helpful and friendly.Very helpful and friendly. Excellent product.0 people found this helpful
-
aluminium curtain trackI purchased an aluminium curtain track and fittings. Product was quality, as anticipated. I had a couple of queries prior to purchase, which their technical specialist dealt with quickly and competently. Telephone and e-mail communications with the company were first class. Only disappointment was the week delay in delivery, otherwise I would have awarded 5 stars. Curtain rail now installed and working well with heavy curtains.0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
