Fineline Heavy Weight Curtain Double Track Set - Bendable for Bay Windows Metal Curtain Double Track Set White Cut Down Kit
Medium Weight
Easily Cut Down
Fineline Heavy Weight Curtain Double Track Set - Bendable for Bay Windows Metal Curtain Double Track Set White Cut Down Kit
Medium Weight
Easily Cut Down
3 - 5 Working Days Delivery
UK Mainland Over £250
FREEDouble Fineline Heavy Weight Curtain Track
Bendable by hand for bay windows, cut to size, and supplied as a complete kit. Ceiling or wall fix, designed for smooth everyday use with medium to heavy curtains.
Simple Installation
Ceiling or wall fix. Bend by hand.
Heavy Weight
Heavy duty up to 20kg
Cut to Size
Trim with a hacksaw
Exceptional Quality
Aluminium profile
Hand Operated
Pull across by hand
Complete Kit
Everything for 1 installation
Good to know: Tracks over 200cm are supplied in 2 pieces. A connector is included.
Why Fineline is a best-seller for bays
Flexible and bendable aluminium curtain track suitable for light to heavyweight curtains. It can be bent by hand to fit most bay windows and can be wall fixed or ceiling mounted.
The Fineline system is designed to be simple to install. The white finish is discreet and blends into the room.
Supplied with 2 bending rods that insert into the profile to help the track hold its shape while bending.
Can be used with double brackets (silver or white) if you want to add a valance in front of the track.
Measurement from the top of the profile to the bottom of the hole in the glider is circa 3.4cm.
Each kit includes two magnetic centre gliders.
What’s in the box
Complete kit for 1 installation. Tracks over 200cm are supplied in 2 pieces with a connector included.
How to bend the track correctly
Insert the bending rods, then form a gentle curve. Avoid a sharp right angle. A soft radius keeps the track running smoothly.
Step-by-step
- Insert the 2 bending rods within the curtain track.
- Roll the track across your knee to form a gentle curved radius (not a sharp corner).
Additional information and accessories
Benefits of the Fineline track
- Able to hold heavy curtains up to 20kg
- Bends easily for standard and reverse bends
- Metal brackets available
- Complete kit supplied for one window
- Easy to cut down with a hacksaw
- Stylish and unobtrusive in the room
- Plastic gliders for quiet operation
Typical areas of use
- Domestic or contract
- Hotel bedrooms
- Surround curtains (mid-weight)
- Care homes
- Schools
- Decorative exhibition tracks
Product video
Further information: supports and gliders included
Tracks will be in 2 pieces at 250cm and over.
| Width | Clip-in supports (wall or ceiling) | Gliders |
|---|---|---|
| 150cm | 4 | 18 |
| 200cm | 5 | 22 |
| 250cm | 6 | 26 |
| 300cm | 8 | 32 |
| 350cm | 10 | 36 |
| 400cm | 10 | 42 |
| 500cm | 16 | 52 |
Product pictures
Further information on the brackets
- Wall fixing double curtain track bracket
- Bracket length: 112mm
- Bracket width: 18mm
- Bracket backplate height: 32mm
- Front track projection: 110mm (wall to front of track)
- Rear track projection: 36mm (wall to front of track)
For bay windows: measure carefully, bend gradually, and keep the curve smooth. If you want us to sense-check your bay, send the window photo and rough dimensions and we will advise.
| Operation | Hand |
|---|---|
| Weight Guide | Medium - Heavy 20kg |
| Delivery | 3 - 5 Working Days Delivery |
What are my Curtain Lining Options?
What are the different curtain heading options?
How to Install Curtain Rails & Blinds into Plaster Board
How to Calculate Curtain Weight?
Which Size Curtain Eyelet do i need for my poles?
How much space will my curtains take up when stacking back
How do I place an order?
What payment methods do you accept?
What are your delivery times?
What is your returns policy?
Can I return made-to-measure curtains?
How to Measure for a Ceiling-Fixed Curtain Track?
How to Measure for a Wall-Fixed Curtain Track?
How to Measure for a Recess Fitted Blind
What is Curtain Fullness & What Fullness will my Curtains be?
Customer Product Reviews
Top customer reviews
Reviews with images
Images in this review
-

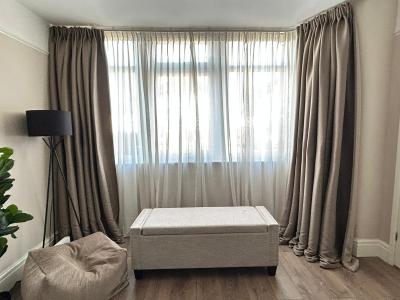

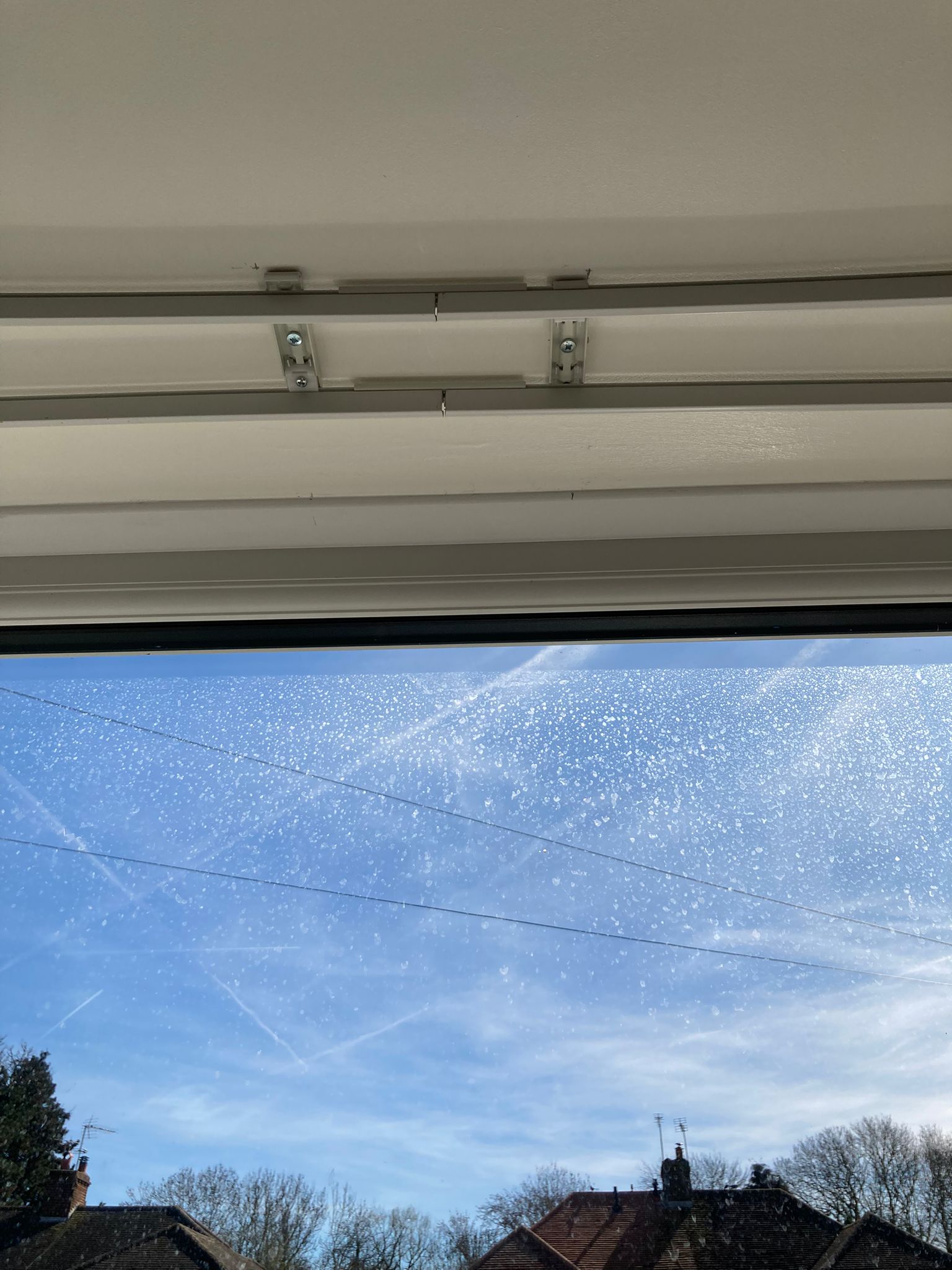

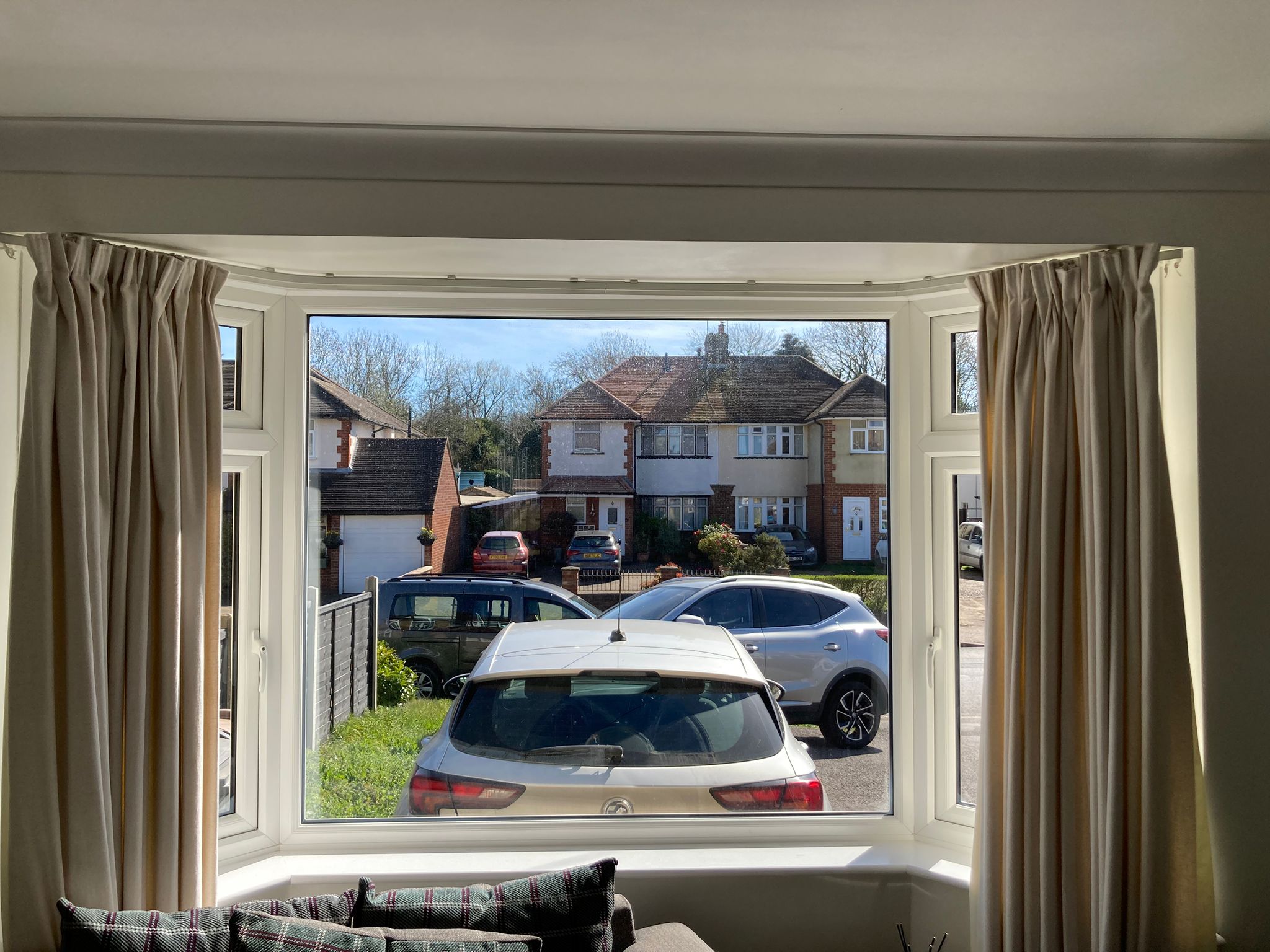

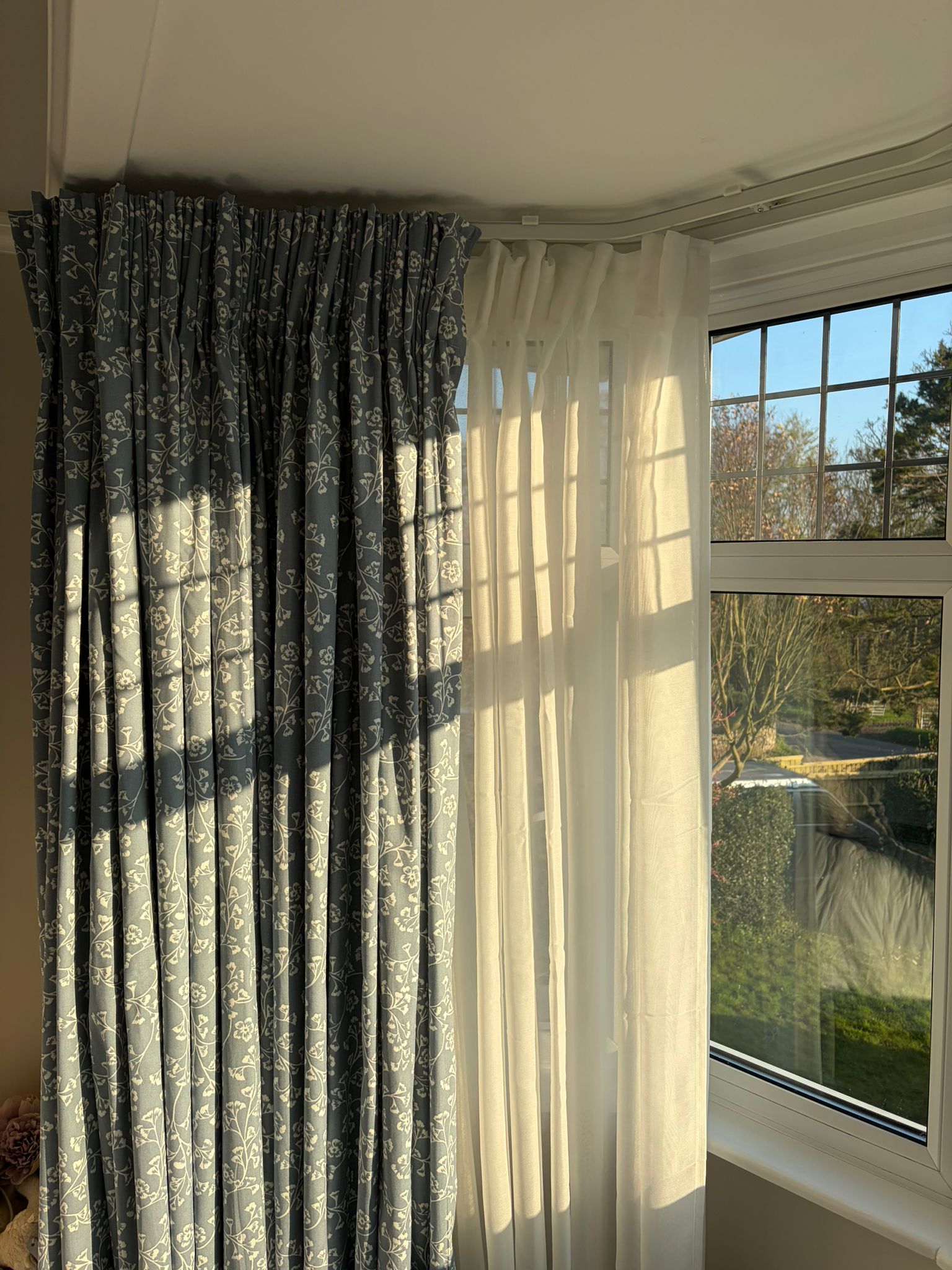

Fineline Heavy Weight Curtain…Bought Fineline Heavy Weight Curtain Rails for bay windows. I was initially concerned regarding bending the tracks but the whole process is very easy. Can strongly recommend the curtain tracks for awkward windows or if the space above the window is very narrow0 people found this helpful
-

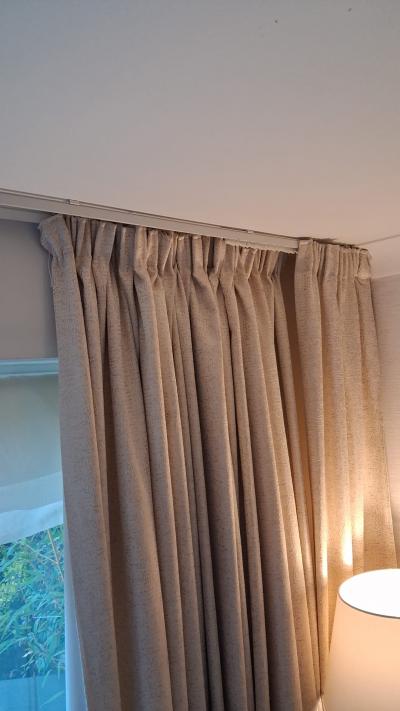

Great experience with Direct FabricsGreat experience with Direct Fabrics. Excellent quality , fantastic product. Customer support was excellent, super responsive and helpful! Would recommend. Jane was particularly helpful.0 people found this helpful
-
Excellent serviceThis was a difficult item which was very long. Direct Fabrics handled the whole purchase impeccably and communicated very well and quickly throughout. Would use again.0 people found this helpful
-

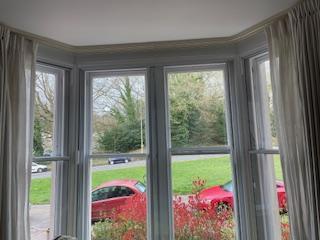

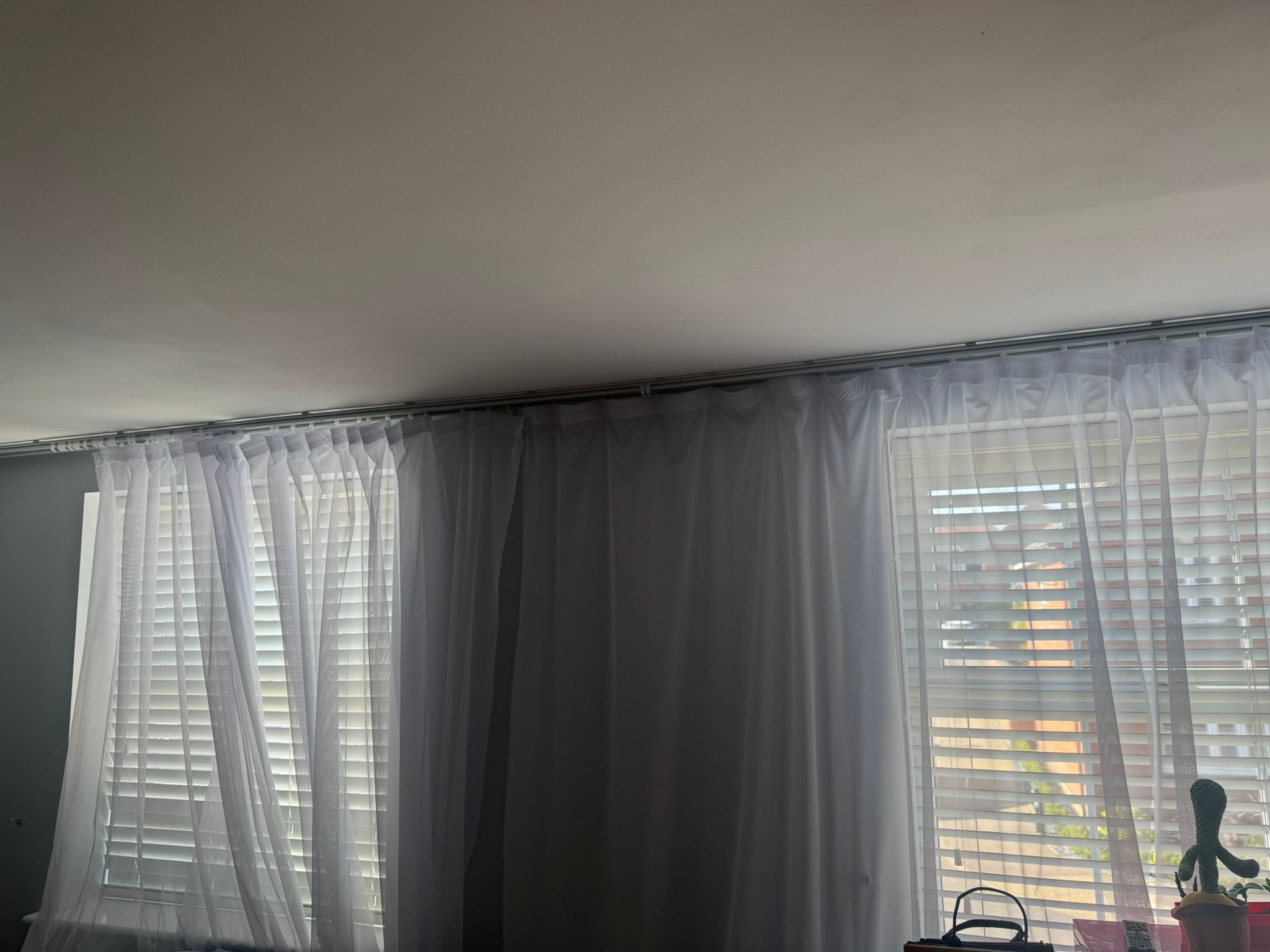

Double Fineline TrackTestimonial
0 people found this helpful -

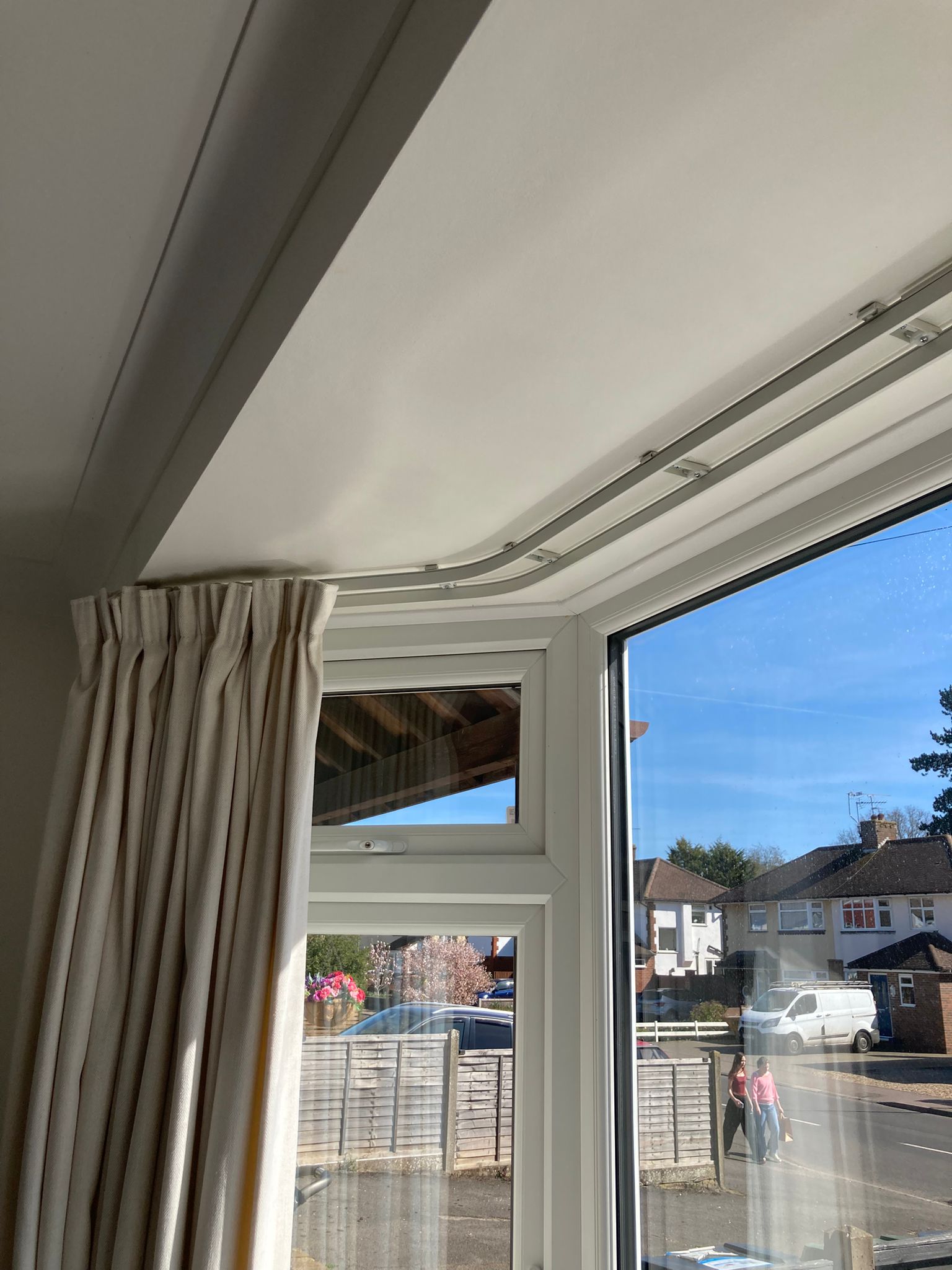

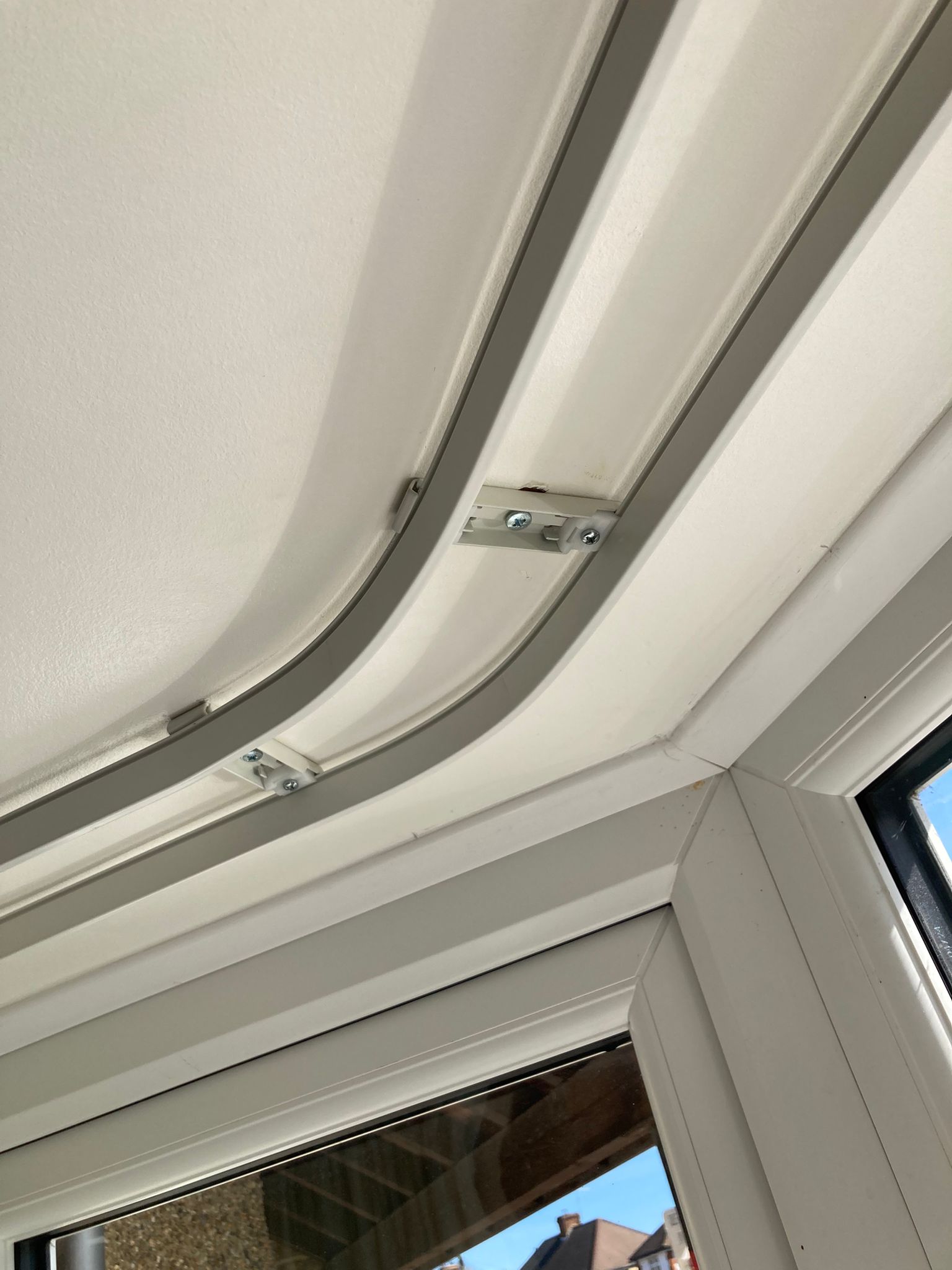

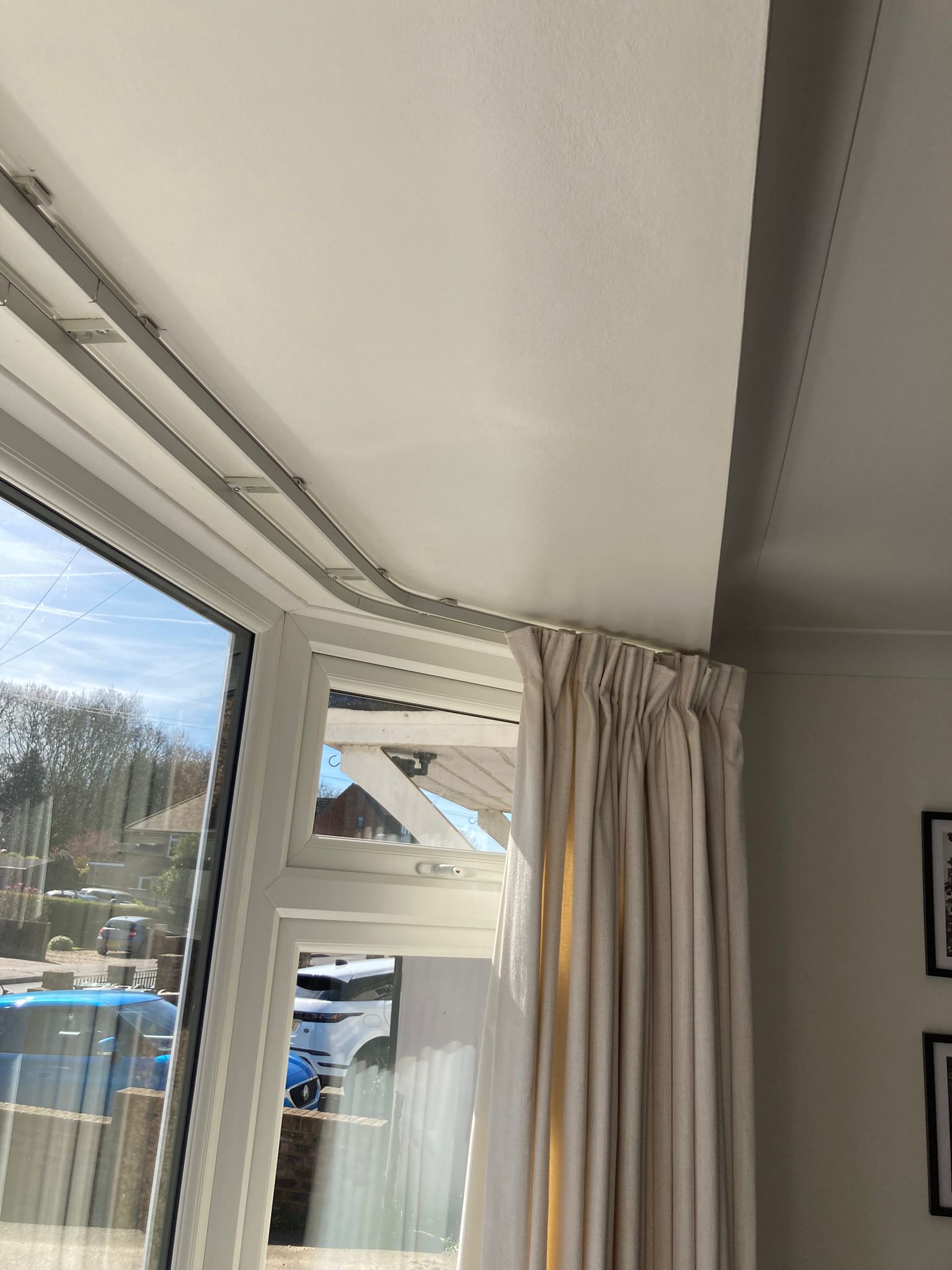

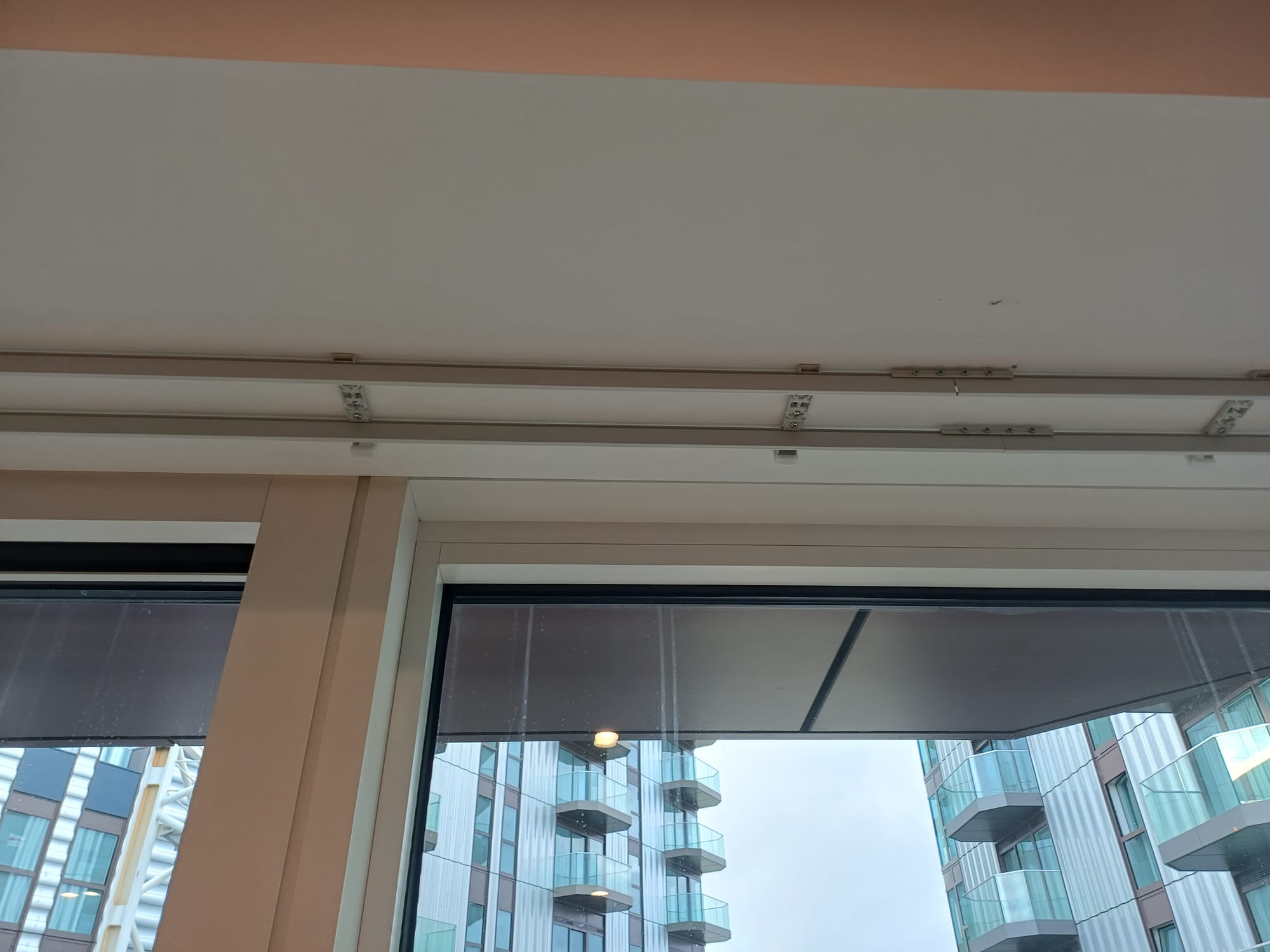

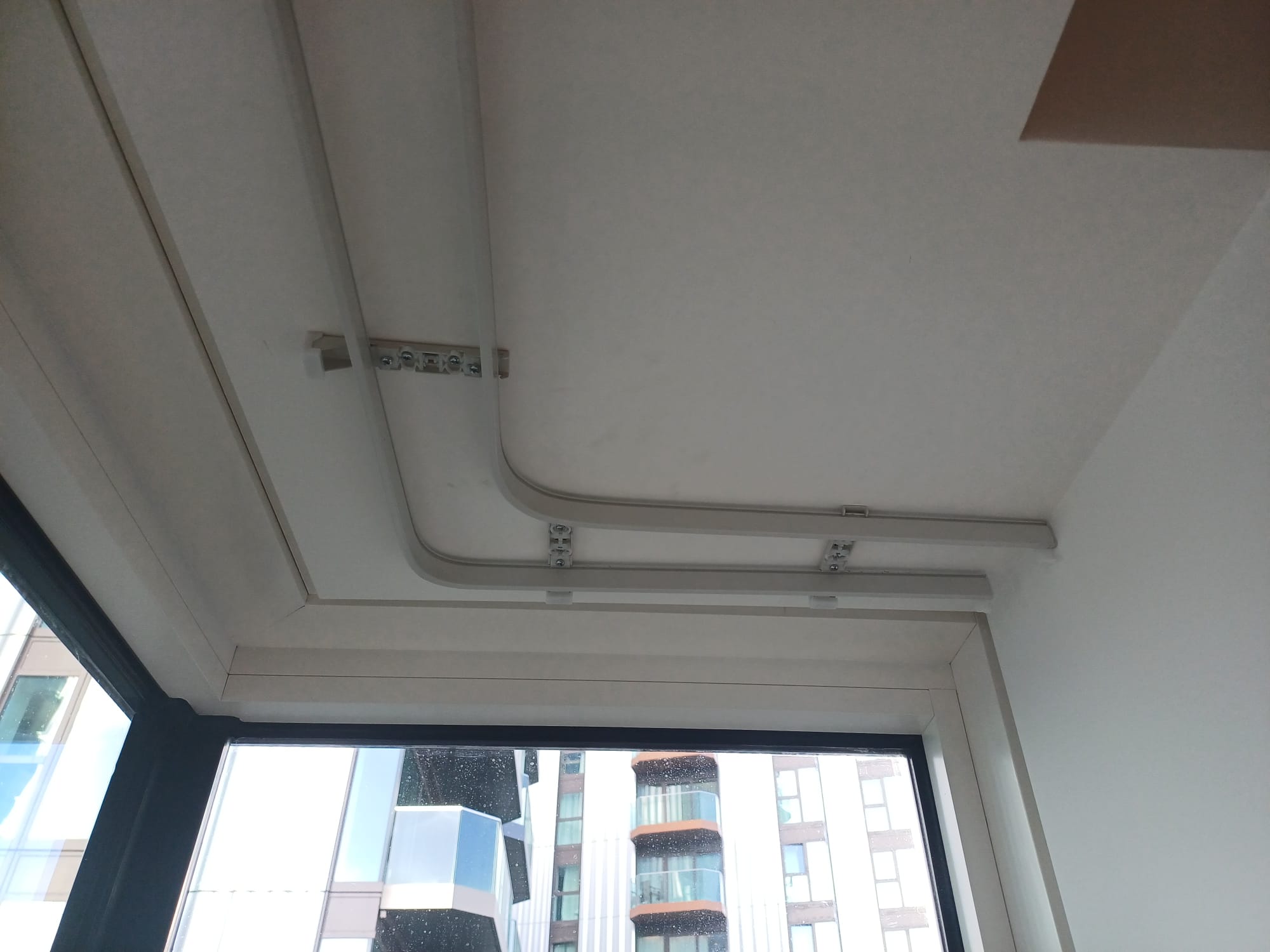

Great curtain double track setGreat curtain double track set! I didn’t install it as a full bay window setup and instead fitted it in sections, but the final result still looks fantastic. The seller’s video instructions were very helpful and made the installation much easier. Thank you!0 people found this helpful
-
Curtain Track ReviewBrilliant, friendly and efficient service. Loved the confirmation of order screen with staff’s happy faces. Nice touch!0 people found this helpful
-

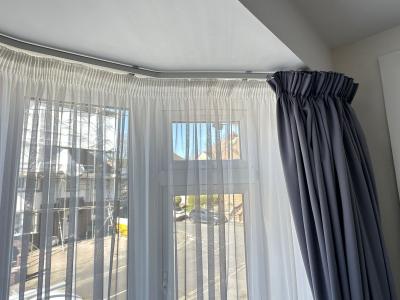

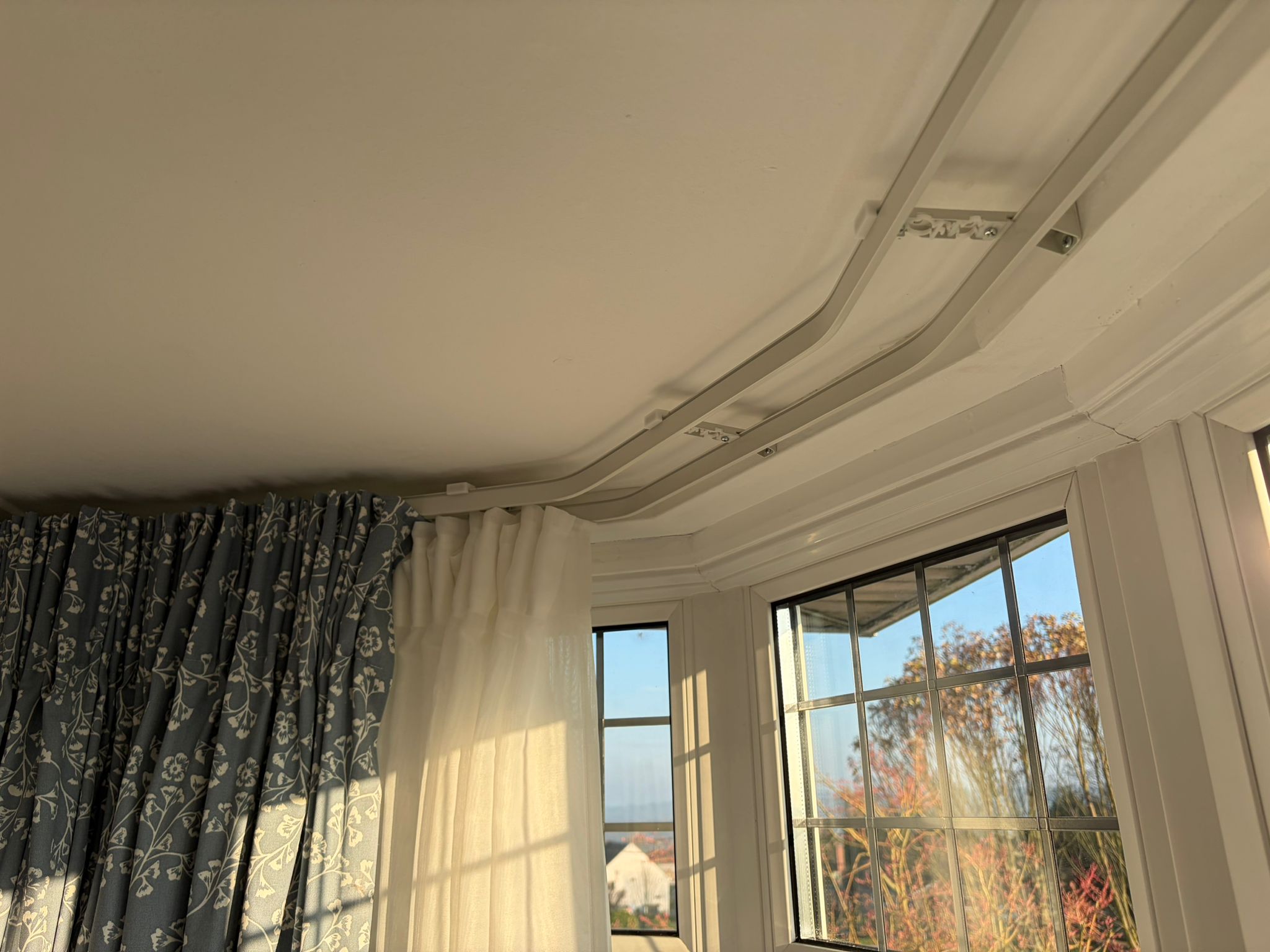

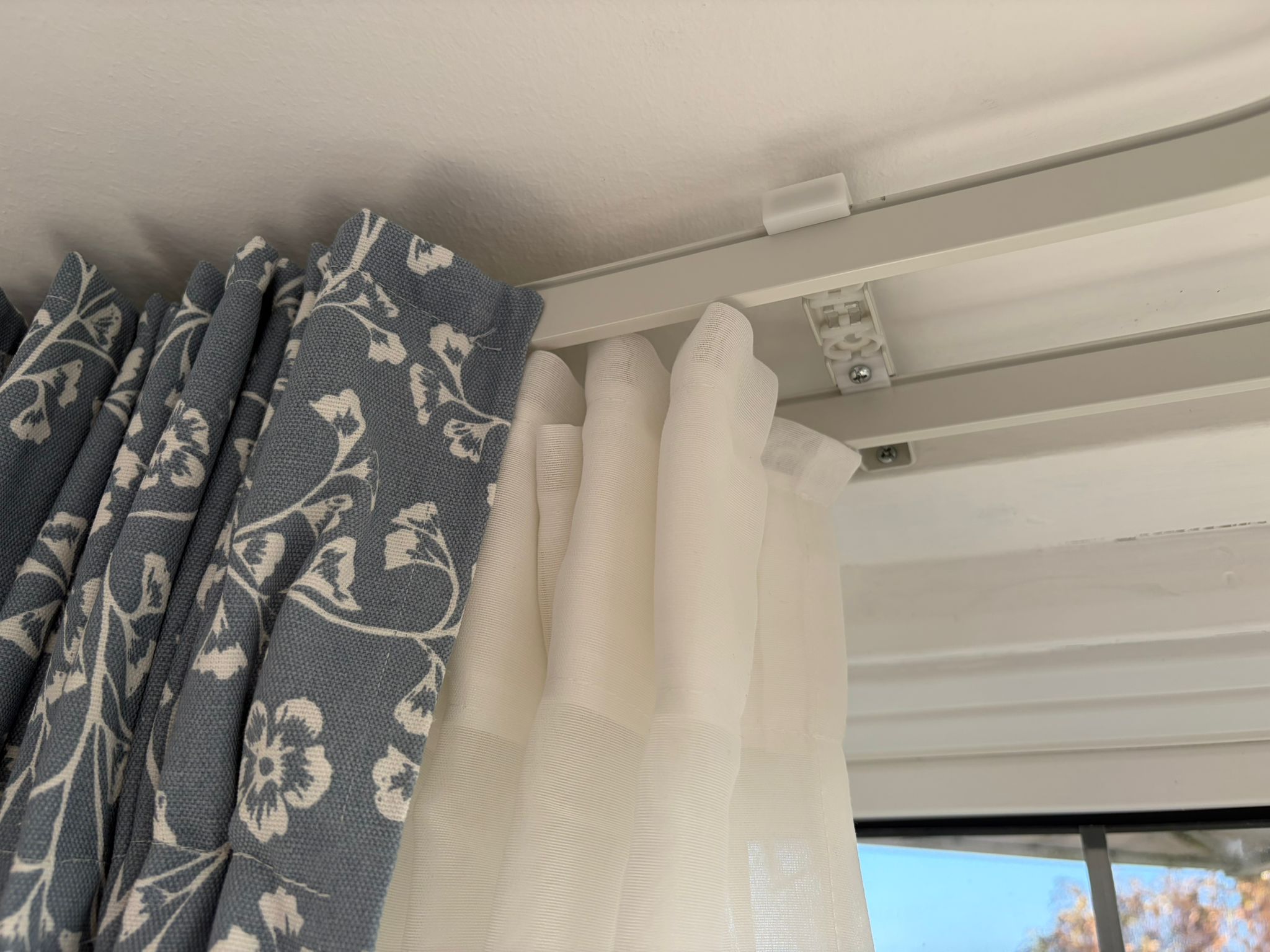

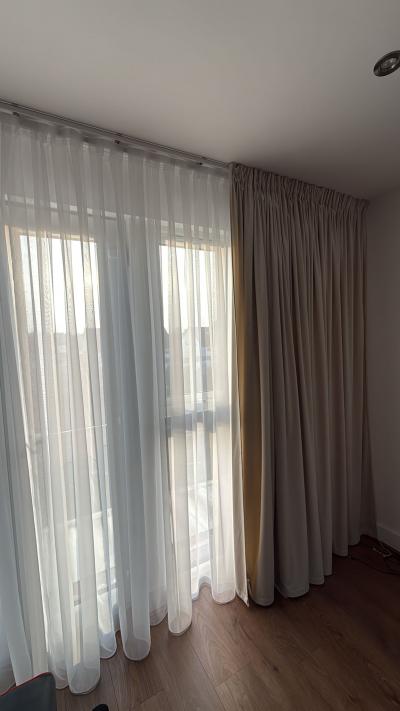

Excellent bay window trackWorks exceptionally well. very happy with the track
0 people found this helpful
-

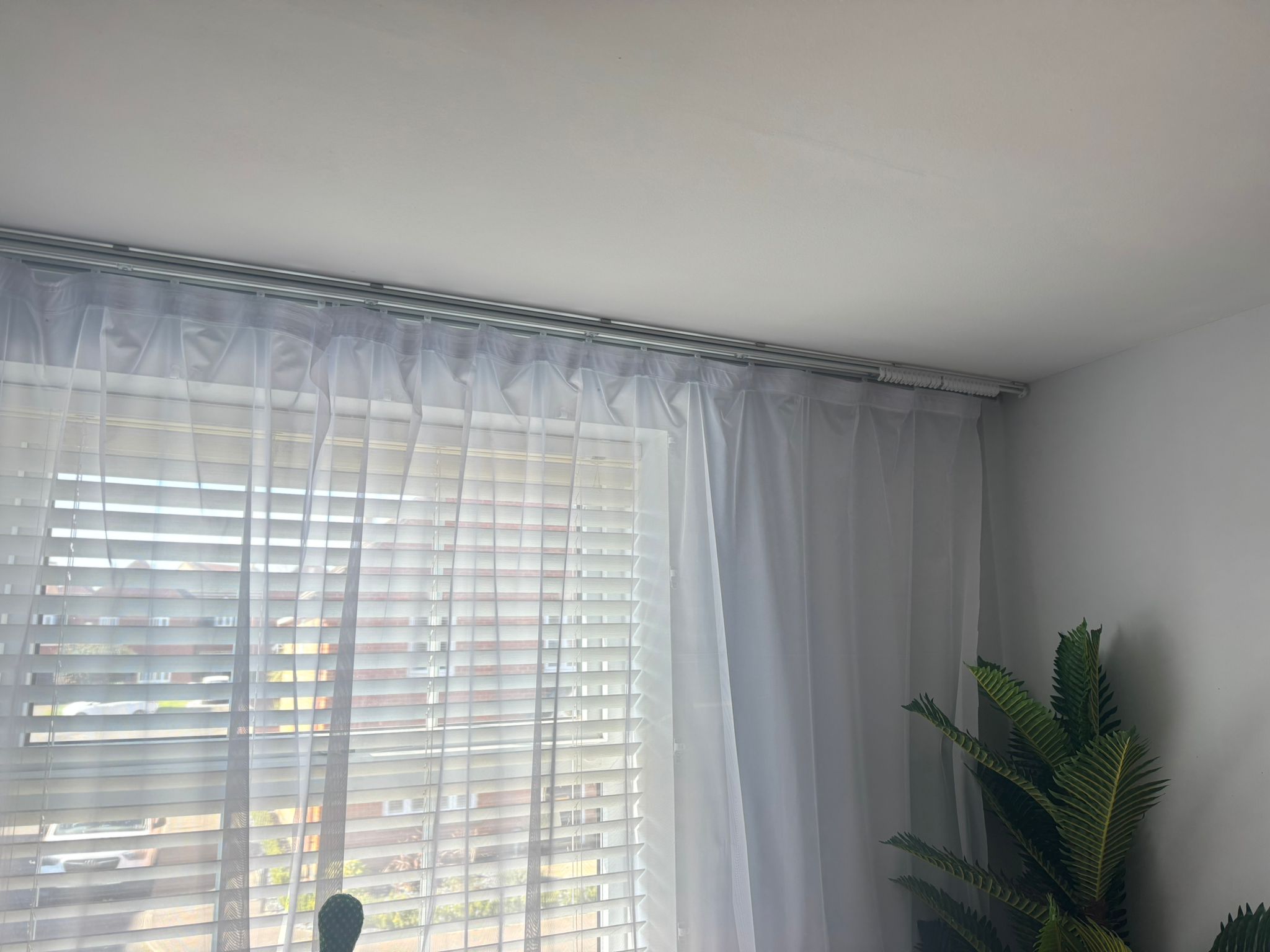

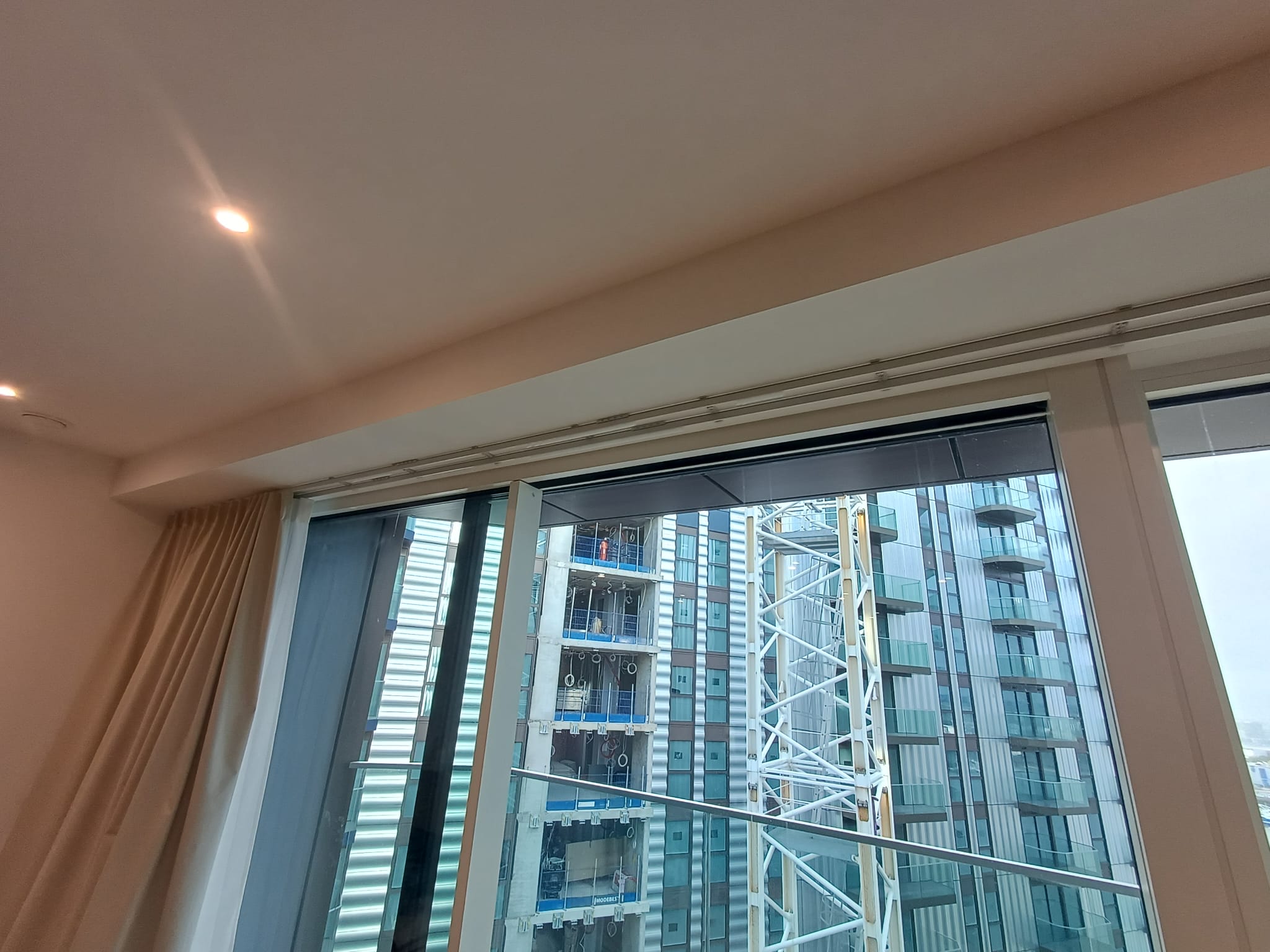

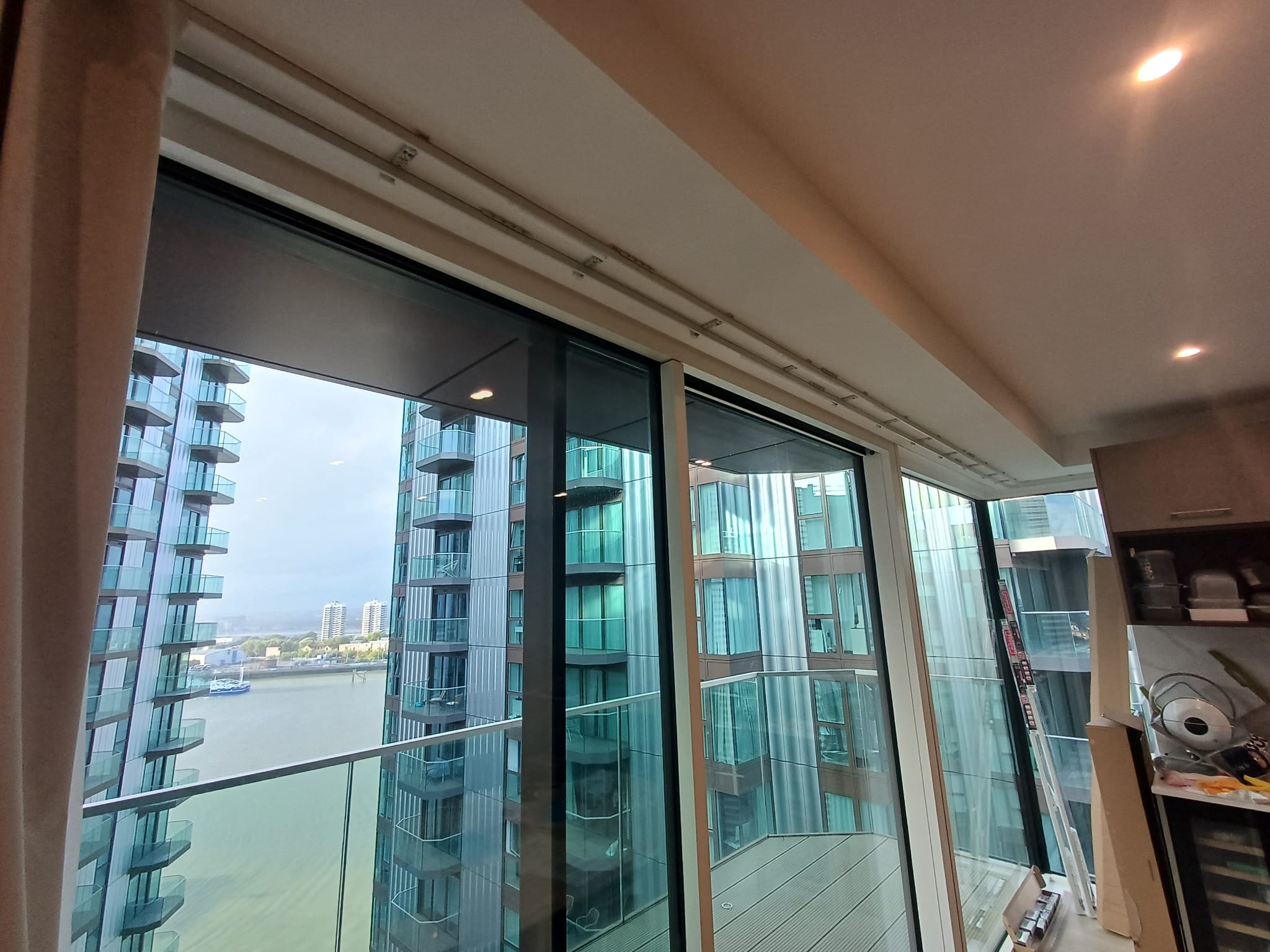

Happy with the Double TrackPhoto submission - happy with the track
0 people found this helpful
-
overall fairly easy to useOverall fairly easy to use and shape as intended. If the clips were easier to work with, it would have been a much quicker install too
0 people found this helpful
-

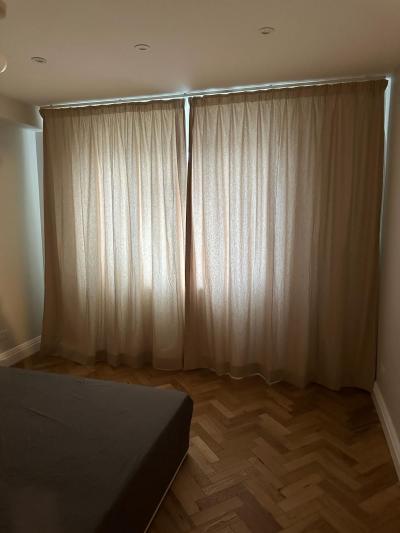

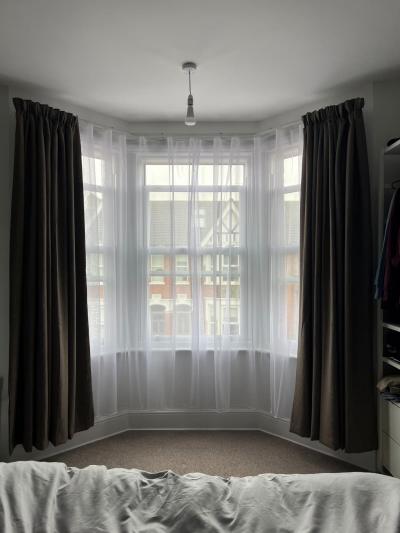

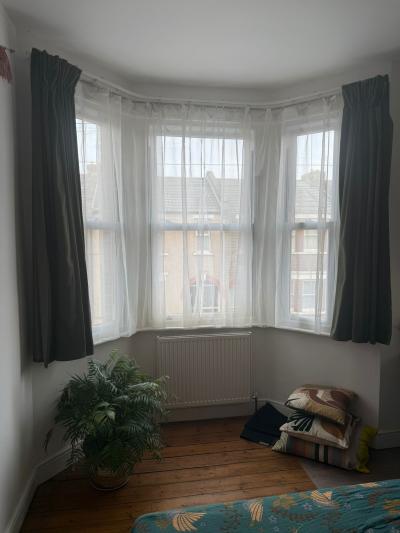

5 StarsPhoto Submission
0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
SAVE TIME - Send your project requirements, large or small. Sample Lists etc
