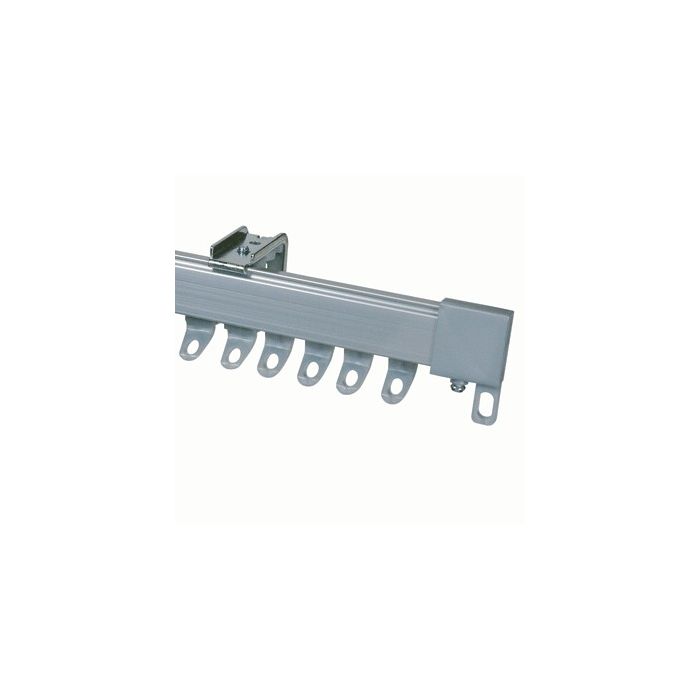

Main image Click to view image in fullscreen Fineline Heavy Duty Bend Your self curtain track metal Silver

Best seller

Fineline Heavy Weight Curtain Track - Bendable for Bay Windows Metal Curtain Track Silver Cut Down Kit

(0)

Happy Customers

Medium Weight

Easily Cut Down

Fineline Heavy Weight Curtain Track - Bendable for Bay Windows Metal Curtain Track Silver Cut Down Kit

(0)

Happy Customers

Medium Weight

Easily Cut Down

Total Cost:

Choose your options

Size

Total Cost:

Estimated Delivery

7 Working Day Delivery

UK Mainland £5.99

UK Mainland Over £250

FREE

Other Location Delivery Info

Fineline Heavy Weight Curtain Track - Bendable for Bay Windows Metal Curtain Track Silver - Cut Down Kit

Simple Installation

Top fix or wall fix

Heavy Weight

Heavy Duty to 20kg

Can be Cut to Size

Use a saw to cut down to your exact size.

Exceptional Quality

Aluminium Profile

Hand Operated

Pull across by hand

Complete Kit

Exverything for 1 Installation

Flexible aluminium track, suitable for light to heavyweight curtains. Bends easily by hand to fit in and out of most bay windows. Can be fixed to the ceiling or wall.

The Fineline system is incredibly flexible and simple to install, it can be ceiling mounted or wall-mounted and as it is easily bent with the included bars then you can tailor it to every need. The white finish is inconspicuous and will blend into your walls.

This curtain track is ideally suited for users wanting a heavy-duty curtain track that is simple to install and that has the ability to be bent in both directions. This means it is ideal for bay windows.

Inside the package are 2 bending rods that are inserted inside the track profile and whilst bending keep the track in shape

The fine line track can be used with double brackets only available in silver and white. This allows you to have a valance in front of the track easily.

What's in the Box - Complete Kit for 1 Installation

***Tracks over 200cm will be in 2 pieces****

Fineline Whats in the Box

Bendable / Flexible Curtain Rail

Our bendable and flexible curtain track is perfect for use in all areas. It has a weight limit of around 20kg per pair and will glide beautifully around your bay and bow windows. Insert the bending rods to the track and bend it over your knee.

How to Bend Your Track

1. Insert the 2 bending rods within the curtain track

2. Roll the track across your knee making sure to make the bend a soft right angle. You do not want a straight right angle. You want it to have a gentle curved radius.

Additional Information and Accessories

FineLine Curtain Track Components

Benefits of the Fineline Curtain Track

Able to hold heavy weight curtains upto 20kg
Ability to bend easily both standard and reverse bends
Metal Brackets
Complete kits with everything to install to one window
Easy to cut down with a hacksaw
Stylish and unobtrusive in your room
Plastic gliders for quiet operation.

Areas of Use Fineline Heavy Weight Curtain Track - Bendable for Bay Windows Metal Curtain Track White - Cut Down Kit

Domestic or Contract
Hotel Bedrooms, Bedrooms,
Surround Curtains Mid-weight,
Care Home Curtains
School Curtains
Decorative exhibition curtain tracks

Further Information - What's in the Box

***Tracks will be in 2 pieces 250cm and over*****

Width	Clip in Supports - Wall or Ceiling Mounted	Gliders
150cm	4	18
200cm	5	22
250cm	6	26
300cm	8	32
350cm	10	36
400cm	10	42
500cm	16	52

Product Video Fineline Curtain Track

Fitting Instructions

Product Pictures

Metal Bendable Curtain Track

Bay Window Flexible Curtain Track

Strong Metal Curtain Track

Fine Line Curtain Track with Pencil Pleat Heading

Flexible aluminium track, suitable for light to heavyweight curtains. Bends easily by hand to fit in and out of most bay windows. Can be fixed to the ceiling or wall.

This curtain track is ideally suited for users wanting a heavy duty curtain track that is simple to install and that has the ability to be bent in both directions. This means it is ideal for bay windows.

Inside the package are 2 bending rods that are inserted inside the track profile and whilst bending keep the track in shape

The fineline track can be used with double brackets only available in silver and white. This allows you to have a valance infront of the track easily.

Whats in the Box

Fineline Whats in the Box

Additional Information and Accessories

FineLine Curtain Track Components

Benefits of the Fineline Curtain Track

Able to hold heavy weight curtains upto 20kg
Ability to bend easily both standard and reverse bends
Metal Brackets
Complete kits with everything to install to one window
Easy to cut down with a hacksaw
Stylish and unobtrusive in your room
Plastic gliders for quiet operation.

Areas of Use Fineline Heavy Weight Curtain Track - Bendable for Bay Windows Metal Curtain Track White - Cut Down Kit

Domestic or Contract
Hotel Bedrooms, Bedrooms,
Surround Curtains Mid-weight,
Care Home Curtains
School Curtains
Decorative exhibition curtain tracks

Further Information - Whats in the Box

Width	Clip in Supports - Wall or Ceiling Mounted	Gliders
150cm	4	18
200cm	5	22
250cm	6	26
300cm	8	32
350cm	10	36
400cm	10	42
500cm	16	52

Tracks will be in 2 pieces 250cm and over

Product Video Fineline Curtain Track

Product Pictures

Fine Line Curtain Track with Pencil Pleat Heading

Features	Standard Gliders
Operation	Hand
Weight Guide	Medium - Heavy 20kg
Delivery	7 Working Day Delivery
