Bay Window Curtain Track - Made to Measure - Custom Bay Track - Simple
2 Weeks or Less - Manufactured to Order
Made to Measure Bay Window Track Designer
This is our 5 Step process to getting you a made to measure bay window curtain track
- 1. Measure the total length of your bay window track route. All the way around your bay. Then Select Size. eg. 210cm - select - 200 to 300cm
- 2. Bay Window Layout - The Design of your window
- 3. The Track You Like. Hand Drawn / Corded / Electric
- 4. Order
- 5. We Contact you to fill in our detailed order form and disucss, Delivery in 5 days. The price will NOT CHANGE, Unliess the sizes do or shape does.
The Track Options - Click Below to Expand
Simple Installation
Top fix or wall fix
Heavy Weight
Heavy Duty to 40kg
Made to Measure
Everything to your exact size
Exceptional Quality
Aluminium Profile with Roller Runners - Contract Duty
Cord Operated
Pull across by hand
Complete Kit
Everything for 1 Installation
Features of the Heavy Duty Cord Drawn Track
- Heavy Duty upto 40kg curtains made from a heavy duty aluminium
- Heavy Duty Roller Runners with a smooth action
- Gliders 12 per linea metre
- 1kg per glider
- Ceiling or wall fix brackets.
- All components for one installation
- 2 Colour Options - White and Black
Ceiling or Wall Mounted Heavy Duty Curtain Track
The Direct Fabrics heavy-duty cord drawn curtain track can be top-fixed or face-fixed as standard. Its heavy-duty white aluminium track, with a neat square design, is designed for use with large or heavy curtains. Heavy-duty roller runners are supplied at a quantity of 12 per linear metre. The weight tolerance of the roller wheel runner is 1kg.
The cord-operated is perfectly suited for heavy-duty contract environments, this track can take nearly anything and with good fittings can hold the heaviest of curtains. The gliders can hold 1kg and are set at 12 per linea metre. So if a track is 400cm there will be 48 gliders. Meaning it can hold 48kg of curtaining and comfortably be moved along with its
This track is for both contract and domestic use and is a particular favourite for use in schools and theatres for backdrops and hall curtains. By using a heavy gage aluminium the track has an extremely durable and ideal for all uses.
Suitable Applications for Heavy Duty Hand Drawn Curtain Track
- Hotel Bedroom Curtains
- Theatre surround curtains
- Front of house stage curtains. approx max sizes 10m x 4m with double fullness. Speak with the team to confirm this track will be suitable.
- Village halls curtain tracks
- School hall surround curtains
- Domestic Large Windows.
Benefits of our Heavy Made to Measure Cord Drawn Drawn Curtain Track: Bay Window Curtain Track
This heavy duty white aluminium track can be used for many large / heavy curtain applications, both commercial and domestic, requiring Cord Drawn drawn operation. Suited for both top and face-fixing scenarios, including availability for use as a curved track, this bestselling Cord Drawn solution finds a home in a wide variety of environments.
Mouting Brackets for Direct Fabrics Track
7.5cm Wall Bracket
10cm Wall Bracket
20cm Double Wall Bracket
15cm Double Wall Bracket
Ceiling Bracket - Space as you wish
Contract Curtain Track Colours
White Contract Curtain Track
Black Curtain Track
Simple Installation
Top fix or wall fix
Heavy Weight
Heavy Duty to 60kg
Made to Measure
Everything to your exact size
Exceptional Quality
Aluminium Profile with gliders - Contract Duty
Hand Operated
Pull across by hand
Complete Kit
Everything for 1 Installation
Features of the Heavy Duty Hand Drawn Track
- Heavy Duty upto 60kg curtains made from a heavy duty aluminium
- Heavy Duty Gliders with a smooth action
- Gliders 12 per linea metre
- 1kg per glider
- Ceiling or wall fix brackets.
- All components for one installation
- 2 Colour Options - White and Black
Ceiling or Wall Mounted Heavy Duty Curtain Track
The Direct Fabrics heavy-duty hand drawn curtain track can be top-fixed or face-fixed as standard. Its heavy-duty white aluminium track, with a neat square design, is designed for use with large or heavy curtains. Heavy-duty roller runners are supplied at a quantity of 12 per linear metre. The weight tolerance of the roller wheel runner is 1kg.
The hand-operated is perfectly suited for heavy-duty contract environments, this track can take nearly anything and with good fittings can hold the heaviest of curtains. The gliders can hold 1kg and are set at 12 per linea metre. So if a track is 400cm there will be 48 gliders. Meaning it can hold 48kg of curtaining and comfortably be moved along with its
This track is for both contract and domestic use and is a particular favourite for use in schools and theatres for backdrops and hall curtains. By using a heavy gage aluminium the track has an extremely durable and ideal for all uses.
Suitable Applications for Heavy Duty Hand Drawn Curtain Track
- Hotel Bedroom Curtains
- Theatre surround curtains
- Front of house stage curtains. approx max sizes 10m x 4m with double fullness. Speak with the team to confirm this track will be suitable.
- Village halls curtain tracks
- School hall surround curtains
- Domestic Large Windows.
Benefits of our Heavy Made to Measure Hand Drawn Drawn Curtain Track:
This heavy duty white aluminium track can be used for many large / heavy curtain applications, both commercial and domestic, requiring Hand Drawn drawn operation. Suited for both top and face-fixing scenarios, including availability for use as a curved track bent in our factory only, this bestselling Handdrawn solution finds a home in a wide variety of environments.
Mouting Brackets for Direct Fabrics Track
7.5cm Wall Bracket
10cm Wall Bracket
20cm Double Wall Bracket
15cm Double Wall Bracket
Ceiling Bracket - Space as you wish
Contract Curtain Track Colours
White Contract Curtain Track
Black Curtain Track
Simple To Install & Operate Electric Curtain Track With 10 Year Warranty
Direct Fabrics Supply leading contract curtain tracks. The electric curtain track has been selected as it is perfect for home and commercial use. This rail has all the features to make it operate simply and efficiently. You will love the speed of setup and the way it will integrate with all your smart home features including google home and Amazon Alexa.
Quiet Operation
Less than 40db. A Room with no sound would be around 35db. So almost silent.
Heavy Weight
Motor Dependent 40kg to 70kg. Heavy Commrecial Work Certifed
Made to Measure
All Tracks are Made to Measure to your exact requirements.
10 Year Guarentee
A Contract Curtain Track with 10 year Guarantee
Our Best Selling Electric Curtain Track
Offering the very best electric curtain track Direct Fabrics have ensured that this range is simple to install
- Quick to Install - Plug and Go - Can be insalled into a spurred socket or Just Plugged in - Weight from 40-70kg - Amazon Alexa & Google Home Compatible - Remote Control or Wall Switch - Time Switch Available - Wave Heading Style Compatible
Why Choose our Electric Curtain Rail
White Rail Profile
Black Rail Profile
Full Feature Overview of the Electric Curtain Track
- Touch Impulse Technology, gently pulling the curtain to open or close (standard feature). - Integrated Emergency Control ensures manual operation of the curtain in case of power failure. - Modular motor, different modules can be attached for various control options: Radio Frequency, Switch, Infrared, Domotics, Building/Hotel Automation, Serial Communication, Z-wave, etc. - Silent motor, speed: 14 – 17 cm/s - Full automatic setting of the limits. - Programming of intermediate positions possible - Touch Impulse sensitivity adjustable in 2 positions. - Stack-back position programmable to every desired setting. - Touch Impulse function can be switched on and off. - 24 Volt DC Power Input, by using the 230 or 115 Volt AC adaptor (white), bracket included - Motor pulley connects motor and FMS track. Also available in upside-down version to hide the motor into the ceiling. - All KS brackets applicable. - Torque: 1.5 Nm. - Variable velocity with slow start and slow stop. - Touch Control. IF the leading edge of the curtain is pulled then the curtain will start closing automatically. - If the power goes out in the property the system will de-clutch itself from the motor and then the home user can work the track manually without worrying about breaking the motor.
Home Automation Curtain Track
Quick Setup
The system is fully operational with Google Home and Amazon Alexa Systems
The remotes for the curtain track operate on a radio signal. By using an internet bridge you can store that signal within the Internet Bridge and instruct your Google Home or Alexa automation system to control the curtain track
Fit your curtain track in the desired position. - Clip on your motor - Clip on your antenna - Connect the remote to your Antenna - Set the tolerances with the motor. - Connect to home automation system
Bending of the Electric Track for Bay Windows
The curtain track can be bent in our bending machines and can be both internal bent and reverse bent at a radius of 20cm. Also the track can be continuously curved for rounded windows in our factory and sent your site.

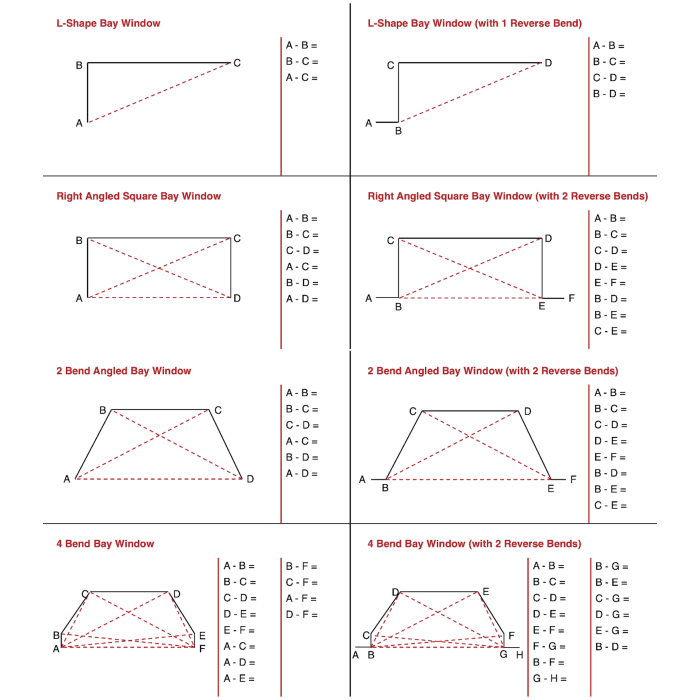

Measurements Required to bend the curtain tracks. Everything is manufactured to the sizes you require, so you will need a totally bespoke quote in order to get the right product for you.
Need Help with the bending options for the track, please ask our friendly team for help.
Remote Control Options
Diamond Remote Control
Wireless, with remote control and/ or switch, 6 channels + 1 group. High Frequency RF remote, range 30 mts
Multi Remote RF 15 Channel
Wireless with remote control upto 15 channels. Which also can be used as wall switch. Items can be operated individually or within groups.
Wireless Timer Wall Switch
15 Channel (Plus) a wall switch timer, touch screen day / week timer, maximun 8 timing points. 3 Year Battery Life
Technical Specification of Shuttle Systems
|
| Shuttle M |
| Shuttle S |
| Shuttle L |
|
|
|
|
|
|
|
Voltage Shuttle |
| 24Vdc |
| 24Vdc |
| 100 - 240V~ 50 - 60hz |
|
|
|
|
|
|
|
RF Multi Receiver |
| Internal |
| Internal |
| Internal |
|
|
|
|
|
|
|
Power Supply |
| External, 100-240Vac – 1,5A - 50-60hz; output 24Vdc - 2,7A | External, 100 - 240Vac - 0,8A - 50 - 60hz; output 24Vdc - 2,5A | Internal | ||
|
|
|
|
|
|
|
Max. power |
| 65 W |
| 40 W |
| 40 W |
|
|
|
|
|
|
|
Torque |
| 1,5 Nm |
| 1 Nm |
| 1 Nm |
|
|
|
|
|
|
|
Speed |
| 14 – 17 cm/s |
| 14 – 17 cm/s |
| 14 – 17 cm/s |
|
|
|
|
|
|
|
Noise Level |
| < 40 dB(A) |
| < 40 dB(A) |
| < 40 dB(A) |
|
|
|
|
|
|
|
Max. curtain weight |
| 70 kg |
| 40 kg |
| 40 kg |
|
|
|
|
|
|
|
Dimensions Motor |
| 7 x 5 x 23 cm |
| 7 x 5 x 20 cm |
| 7 x 5 x 28 cm |
|
|
|
|
|
|
|
Net. weight motor |
| 930 gr. |
| 700 gr. |
| 975 gr. |
|
|
|
|
|
|
|
Dimensions Power Supply | 50 x 110 x 30 mm |
| 50 x 80 x 30 mm |
| - | |
|
|
|
|
|
|
|
Protection degree |
| IP20 |
| IP20 |
| IP20 |
|
|
|
|
|
|
|
Max. running time |
| 175 sec (in one direction) | 240 sec (in one direction) | 240 sec. (in one direction) | ||
|
|
|
|
|
|
|
Certification & Marking | CE/FCC |
| CE/FCC |
| CE/FCC |
Choosing The Right Electric Curtain Track
If you have read this far you are interested in our electric curtain track. The main things to consider how heavy are my curtains and is this track going to work. to be clear this electric curtain track is going to glide quietly and effortlessly as the motor on the track is geared to take 40-70kg. It will work smoothly and operate well across the window and around corner for bay windows. If you are looking for the bay track to go around a baywindow then submit an enquiry for a bespoke quote for your electric curtain track.
- It can be used for heavy curtains, providing reliable and smooth operation.
- The track is designed to be bent for Bay windows, allowing for customized installations. Bent in our factory.
- It is ideally suited for Stage Curtains, offering durability and precision control.
Customer Reviews
Lots of thanks to Alana in sales that gave me lots of great help to get the right curtain rail for a very awkward bay window. Easy to fit and my customer is very pleased.
Excellent company! I have bought curtains, curtains rails and extra cloth from them and I have always received the best service and products. Will recommend and buy again from Direct Fabrics.
Really happy with the product and the service, i would definitely use again.
Additional Information
Composition | No |
---|---|
Flame Retardant Certified Rating | No |
Acoustic Absorption Rating | No |
Fabric Style | No |
Features | Standard Gliders, 60 / 80mm Wave |
Operation | Hand, Cord, Electric |
Weight Guide | Heavy 20-40kg |
Delivery | 2 Weeks or Less - Manufactured to Order |
Washing / Cleaning Information Face Fabric | No |
Flame Retardant | No |
Instructions and Brochure | No |
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
Type of Curtains | Fitted On | Where to Measure from - to desired length |
Pencil Pleat Curtains | Curtain Track | Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
Pencil Pleat Curtains | Curtain Pole | Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
Eyelet Curtains | Curtain Pole – Only | Top of the pole *we add on the upstand to our curtains, |
Pinch Pleat Curtains | Curtain Track | The underside of the track |
Wave Curtains | Curtain Track Designer Pole | The glider underneath the track. The curtain will sit under the track. |
Acoustic Curtains | See Heading Style of Choice above | Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
