FREERecess Mount Curtain Pole (35mm): Side-Fix Kit with 2 Recess Brackets

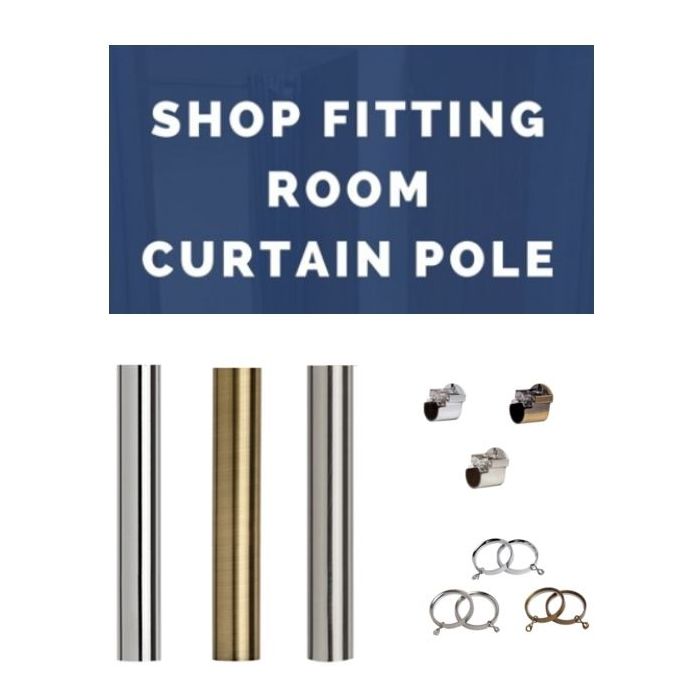

A practical recess curtain pole kit designed to mount between two side walls. Commonly used for recessed windows and shop changing rooms where ceiling fixing is not suitable. Supplied with two recess brackets for side mounting.
Recess Mount
Side-wall fixing for recessed openings
Bracket Kit
Supplied with 2 recess brackets
35mm Pole
Standard 35mm diameter
3 Finishes
Silver, Chrome, Antique Brass
Eyelet Friendly
Supplied without rings as standard
Cut to Size
Can be cut down with a hacksaw
Expectation setting: This is a recess (side-fix) pole system, not a ceiling-fix track. It mounts between two flat side surfaces using the supplied brackets.
Recess curtain pole for recessed windows and side-wall installations
This recess curtain pole is designed to mount from side wall to side wall, making it a practical option where ceiling fixing is not possible or where you need a clean recess installation.
Commonly used for recessed windows, the pole allows eyelet curtains to stack back into the recess. The kit is also widely used in retail changing rooms, where the pole is mounted between two partition walls.
The pole diameter is 35mm and it is available in Silver, Chrome, and Antique Brass. Optional rings are available, however the pole is supplied without rings as standard for use with eyelet headings.
Where this fits in our range
Choose this when you need a recess / side-fix pole rather than a ceiling-fixed track. It is best suited to openings with solid side walls and is commonly specified for changing rooms and recessed window applications.
Best suited for
- Shop changing rooms (between partition walls)

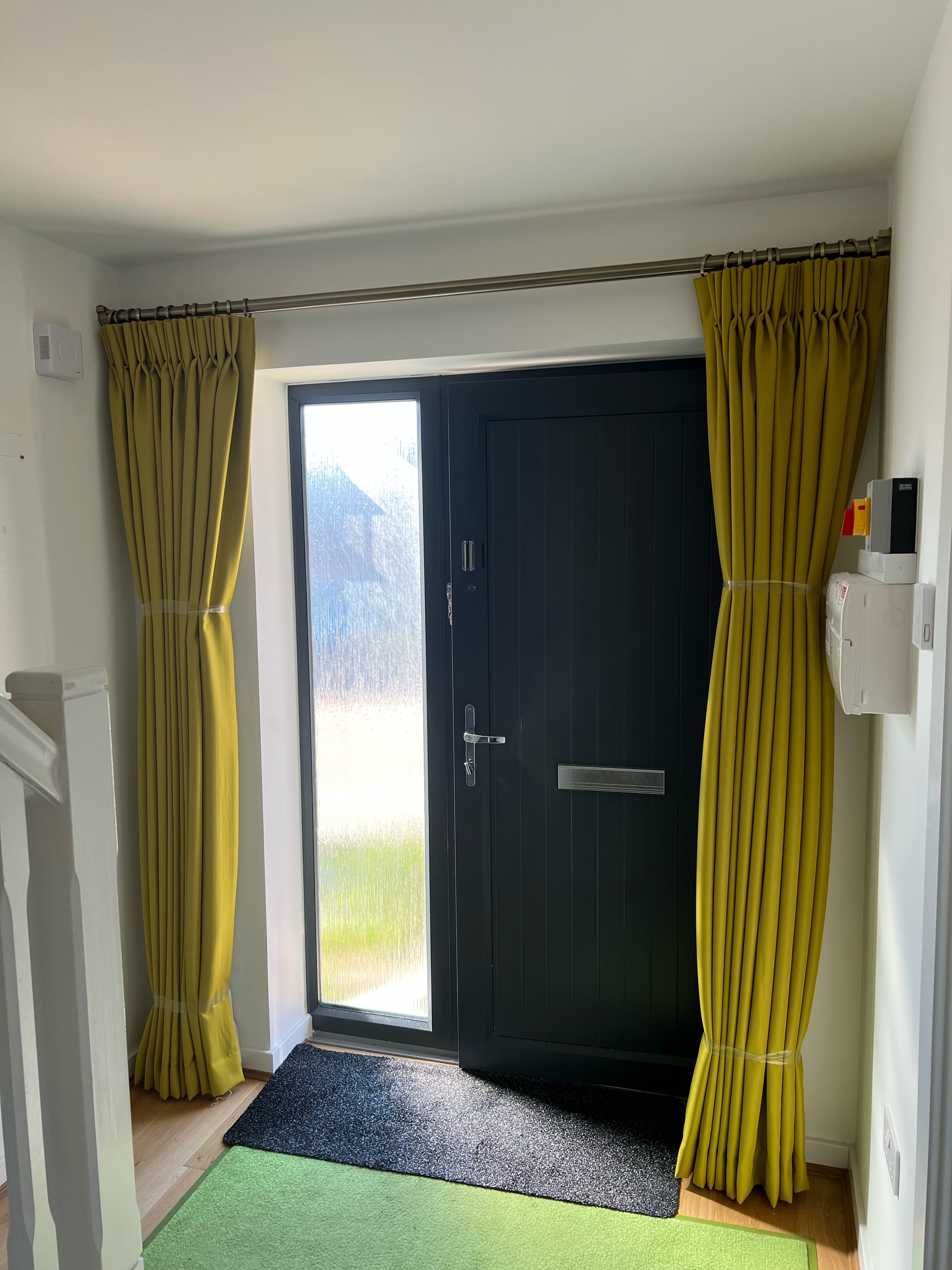

- Recessed windows where you want curtains to stack back into the reveal
- Situations where ceiling fixing is not suitable
How to install a recess curtain pole
The supplied cup brackets unscrew from the backing plates. Fix each backing plate to the side wall using screws through the plate.
Position the pole between the brackets, then locate and secure by fastening the cup brackets back onto the wall plates.
For best results, ensure both fixing surfaces are flat and sound before installation.
Who uses our recess curtain poles
This recess curtain pole is widely used for retail changing rooms and other commercial environments where side-wall fixing is preferred. It is also a straightforward solution for domestic recessed windows.
Direct Fabrics supplies curtain hardware and manufactures changing room curtains for a wide range of UK retail and contract environments. This product is intended for repeatable installations where a simple recess mounting method is required.
Technical specifications
| Product type | Recess mount curtain pole kit with 2 recess brackets |
| Pole diameter | 35mm |
| Finishes | Silver, Chrome, Antique Brass |
| Rings | Optional. Supplied without rings as standard (for eyelet curtains). |
| Cutting | Can be cut down with a hacksaw |
If you require specification documents or fitting guidance for project files, please refer to the spec tab (where provided) or contact us prior to ordering.
| Delivery | 3 - 5 Working Days Delivery |
|---|
How to Install Curtain Rails & Blinds into Plaster Board
How to install Metal Curtain Poles
How to Measure for a Recess Fitted Blind
Customer Product Reviews
Top customer reviews
Reviews with images
Images in this review
-
Very helpful and polite no trouble to...Very helpful and polite no trouble to sort a small order out great service.0 people found this helpful
-
Quick service good valueQuick service good value0 people found this helpful
-
Recess Curtain Pole
0 people found this helpful -
Excellent product advice and follow-up, delivered ahead of schedule.Excellent product advice and follow-up, delivered ahead of schedule.0 people found this helpful
-
GreatEasy to order online, great comms & fast delivery.0 people found this helpful
-
Quality ProductOrdered curtain pole one day and arrived 2days later. Quality product, already up and doing the job.0 people found this helpful
-
excellent customer serviceThe curtain pole did not arrive when expected. Contacted the office and Lizzie was extremely helpful sending another out by courier the next day.0 people found this helpful
-
Very good serviceVery good service, competitive price and prompt delibery0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
