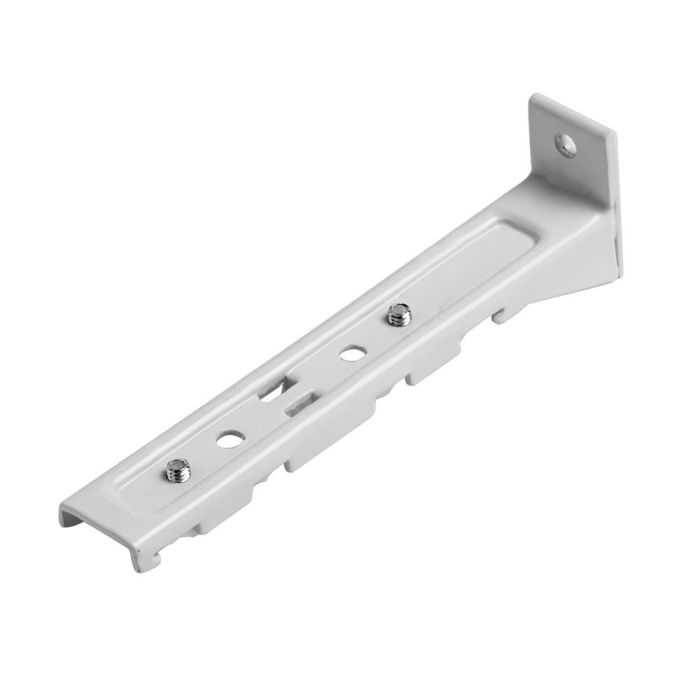

FREEFineline Double Face Fix Support (Pk4) – White
A white fixing support designed for Fineline installations where a tidy, professional finish is required. Supplied as a pack of 4 for consistent support points across single or multiple window elevations.
Support Point
Adds a secure fixing position where additional support is required.
Neat Appearance
White finish for clean presentation in contract and domestic settings.
Pack of 4
Suitable for repeat installations and multi-window projects.
System Matching
Intended for use with Fineline components (confirm compatibility in specs).
Expectation setting: This listing is for a fixing support (hardware), not a curtain or fabric. Compatibility can vary by pole/track type and site substrate. Please confirm dimensions, application and fixing requirements in the Specifications tab before ordering.
Overview
The Fineline Double Face Fix Support (White) is designed to provide an additional fixing point within a Fineline installation where extra support is required or where repeatable, consistent fixing positions are needed across a project.
Supplied as a pack of four, it supports efficient fitting on site and helps maintain a uniform finish across multiple rooms or elevations.
For specification-critical work, confirm compatibility, dimensions, and any recommended fixing method in the specifications tab. If certificates or manufacturer guidance are available for this component, these will also be provided in the spec tab.
Where this fits in our range
This is a Fineline hardware support component for installers and contractors. Use it alongside compatible Fineline poles/tracks and fittings when you need an additional support point or a consistent, tidy white finish across the installation.
Best suited for
Suitable for contract and domestic curtain hardware installations where a white support component is required and a consistent finish matters.
Commonly specified for hospitality and managed property environments where maintenance teams and fitters need repeatable, standardised components across multiple rooms.
Contract installations
A practical choice for volume installs where consistent components simplify fitting and ongoing replacements.
Refits and maintenance
Useful for refurb work where existing Fineline systems require additional support points or like-for-like hardware updates.
Technical specifications
| Product | Fineline Double Face Fix Support |
| Colour | White |
| Pack Quantity | 4 |
| Compatibility | For Fineline system use (confirm pole/track compatibility in spec tab) |
| Installation Notes | Fixing method depends on substrate and site conditions (see spec tab for guidance if supplied) |
Dimensions, compatibility details, and any available manufacturer guidance/certificates are provided in the specifications tab. For contract work, confirm substrate and fixing selection on site prior to installation.
| Delivery | Next Day Expected But Not Guaranteed. (Ex NI, SH, I) |
|---|
How do I place an order?
What payment methods do you accept?
What are your delivery times?
What is your returns policy?
Customer Product Reviews
Top customer reviews
-
The product is as expected.The product is as expected.0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
