76mm Wave Curtain Heading Tape 80mm or 60mm Wave - 50m Bag
3 - 5 Working Days Delivery
UK Mainland Over £250

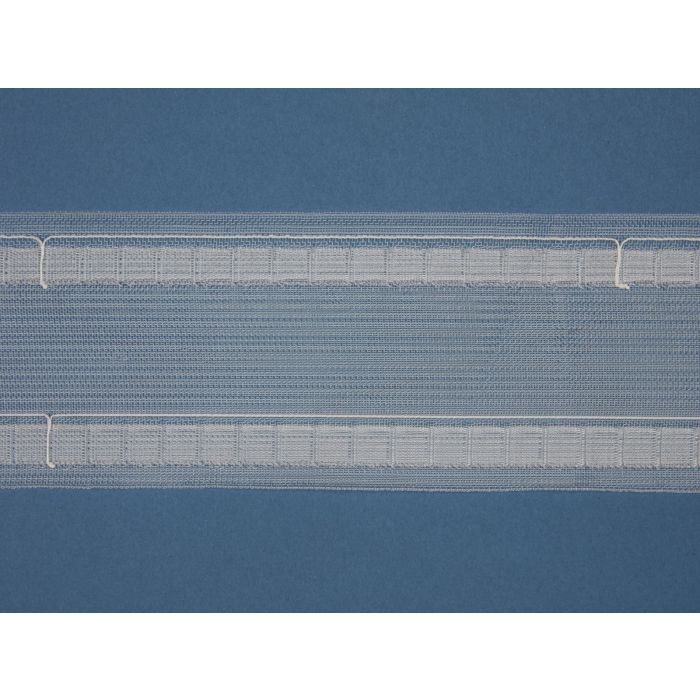

FREEWave Curtain Heading Tape
Wave curtain heading tape is designed to form consistent, soft “S-wave” folds across the top of the curtain, giving a clean, contemporary finish. It is used to set the hook positions so the curtain hangs in an even wave pattern when installed on a compatible wave track.
Wave Finish
Forms consistent, modern folds
Set Hook Spacing
Supports repeatable pleat positions
Workroom Ready
Suitable for made-to-measure curtains
50m Roll
Pack size as supplied
76mm Tape
3" heading tape width
Track Dependent
Use with matching wave tracks
Compatibility note: Wave heading tapes must be used with the corresponding wave curtain tracks to achieve the correct wave formation and spacing.
Wave curtain heading tape for a clean, modern curtain finish
This tape is used to create a decorative wave-style heading so curtains hang in smooth, uniform folds. The wave formation is achieved by placing hooks into the tape at the required spacing for the chosen wave size.
It is intended for made-to-measure curtain work where a consistent, contemporary “wave” appearance is required and where the curtain will be installed onto a compatible wave track system.
Washing instructions and any available certificates are provided in the specifications tab where applicable.
Where this fits in our range
Choose wave heading tape when the project requires a uniform, modern wave curtain appearance. For more traditional gathered headings, use alternative heading tapes designed for those finishes.
Best suited for
- Wave curtains on compatible wave track systems
- Contract and residential installations where a consistent heading finish is required
- Workrooms producing made-to-measure curtains to defined wave sizes
Who uses wave curtain heading tape
Used by curtain makers, workrooms, fitters and maintenance teams specifying wave curtains on compatible track systems. Suitable where a consistent, repeatable heading finish is required across multiple rooms or elevations.
Commonly selected for hospitality and education interiors where a clean, contemporary look is preferred and where the curtain heading must align to the track’s wave specification.
Wave heading sizes and hook spacing
Choose the wave heading size and insert hooks at the required intervals to match the track specification. This product supports 60mm or 80mm wave headings with hook spacing of 120mm or 160mm (as stated in the supplied information).
Technical specifications
| Colour | White |
| Tape Width | 76mm (3") |
| Pack Size | 50m roll |
| Wave Heading Options | 60mm or 80mm wave heading. Insert hooks to suit spacing 120mm or 160mm. |
This item is a heading tape (not a track). Ensure the selected wave tape, hook spacing and wave track specification are compatible for the intended installation. Washing instructions and any available certificates are provided in the specifications tab where applicable.
| Composition | 100% Polyester |
|---|---|
| Delivery | 3 - 5 Working Days Delivery |
| Flame Retardant | No |
How to Measure for a Recess Fitted Blind
How do I calculate how much curtain fabric I need?
Customer Product Reviews
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
