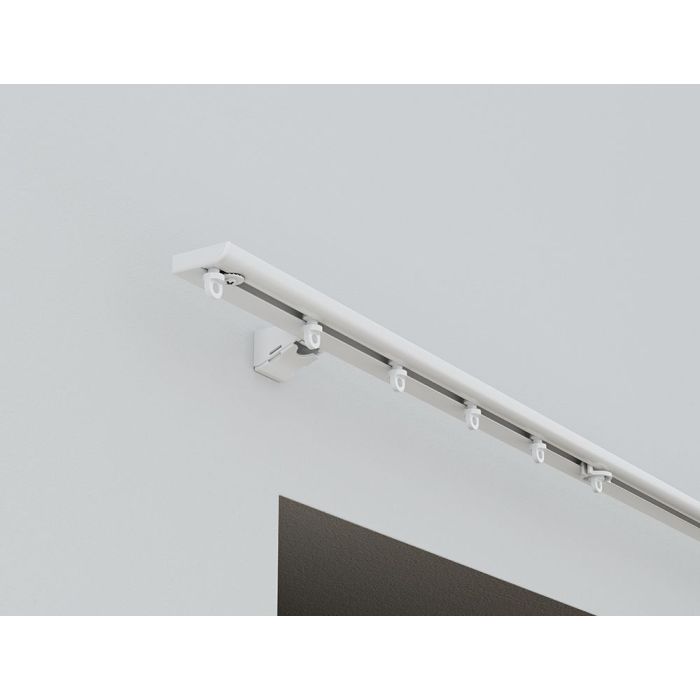

FREEWave Compatible Slimline Curtain Track – 8mm Deep
Ultra slim aluminium curtain track designed for clean, modern interiors. Only 8mm deep, ideal where discretion matters but smooth, reliable curtain movement is essential.
8mm Slim Profile
Discreet appearance for minimal interiors.
Wave Compatible
Designed for uniform, professional wave curtains.
Wall or Ceiling Fix
Flexible installation options.
Multiple Glider Options
Standard, 60mm wave, or 80mm wave gliders.
Clip-On Brackets
Fast installation and easy removal.
Smooth Operation
Low friction curtain movement.
Product Overview
This slimline aluminium curtain track is designed for modern interiors where a clean, minimal finish is essential. With an ultra shallow profile of just 8mm deep, it provides discreet performance without visual bulk.
Fully wave compatible when paired with the correct wave gliders and spacing, it delivers consistent, uniform wave curtains. It can also be used with standard pleated curtain headings for added flexibility.
The track can be wall fixed or ceiling fixed, making it suitable for bay windows, recessed ceilings, and full height glazing.
Expectation setting: wave performance depends on correct glider selection, spacing, and curtain fullness. Ensure compatible wave systems are selected when ordering.
Where It Is Used
Suitable for domestic and contract environments including homes, hotels, serviced apartments, offices, and care settings.
Particularly suited to:
- Modern apartments
- Ceiling recessed installations
- Floor to ceiling glazing
- Wave curtain systems
Ordering Guidance
Select your preferred glider type based on heading style and wave depth. If unsure which spacing to choose, contact our team before ordering.
Technical Specifications
| Material | Aluminium |
| Profile Depth | 8mm |
| Fixing Options | Wall or Ceiling |
| Glider Options | Standard, 60mm Wave, 80mm Wave |
FAQ
Is this track suitable for wave curtains? ⌄
Can it be ceiling fixed? ⌄
Is it suitable for heavy curtains? ⌄
Are brackets included? ⌄
| Operation | Hand |
|---|---|
| Delivery | 7-10 Working Days |
Customer Product Reviews
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
