Multi-Channel Curtain Track: 1, 2 & 3 Channel Ceiling Mounted Systems
Our multi-channel curtain tracks are designed for simple top-fix installation and let you combine blackout curtains, sheers and voiles on a single reversible profile. Widely used in hotels, leisure spaces and contract interiors, these slim, low-profile aluminium tracks switch between 2 and 3 channel configurations, and are equally suited to domestic projects wanting a discreet finish.
Track specification checked by Jane, Direct Fabrics track specialist.
For wave curtains, use the 3-channel profile with the front and back channels only (skip the middle channel). Fit the wave heading to the front channel — either 60mm or 80mm wave — and a standard-glider curtain to the back. Skipping the middle channel gives 91.6mm of clearance, enough for either wave width. The 2-channel profile, and the front-to-middle gap on the 3-channel profile (both 61.2mm), are too tight for 80mm wave — use 60mm wave or standard gliders there instead.
Screws are not included, as ceiling substrates vary. Predrilled holes accept up to a 10mm screw head. White screw caps are provided for a neat finish.
Every multi-channel curtain track is covered by our 10-year guarantee, giving you long-term confidence in the track and its components for hotel, healthcare, education and residential installations alike.
At a glance
Simple Installation
Ceiling mounted multi-channel tracks with pre-drilled holes for fast fitting.
Medium to Heavy
Supports medium to heavy curtains up to 15kg per running metre, ideal for blackout and lined curtains.
Made to Measure
All curtain tracks are cut to your exact measurements for a perfect fit.
10-Year Guarantee
Durable aluminium profile with smooth gliders, backed by our 10-year guarantee.
Hand Operated
Easy manual pull operation across all track configurations.
Complete Kit
Supplied with all components required for one installation.
Which Channel Option Do I Need?
Match your use case to a channel count before ordering. If you're still unsure, send us your requirement and we'll confirm the right spec.
1 Channel
Single curtain, wave or standard heading. Best for bedrooms and living rooms with one layer of fabric.
2 Channel
Sheer + blackout combination. The most common choice for hotel bedrooms and light-sensitive rooms.
3 Channel
Sheer + blackout using the front and back channels only, with 60mm or 80mm wave on the front. Best for hospitality and healthcare settings wanting a wave heading with full blackout behind it.
Installation video
Watch the fitting steps for multi-channel curtain tracks. Use this alongside your ceiling substrate fixings guidance.
Multi-Channel Curtain Track Profiles
Choose your profile based on curtain layering and whether you need wave gliders. This table is the fastest way to avoid ordering the wrong profile.
| Track Profile Size | Glider Options |
|---|---|
| 1 Channel Flat Track 46.8mm Total Depth |
Wave or Standard Gliders |
| 2 Channel Flat Track 46.8mm Total Depth |
Standard Gliders Only Not enough spacing for wave gliders. |
| 2 Channel System Profile 108mm (61.2mm Between Channels) |
60mm Wave or Standard Gliders 61.2mm spacing is too tight for 80mm wave. |
| 3 Channel System Profile 108mm 91.6mm Between Front & Back Channels 61.2mm Between Front & Middle |
Use front and back channels only (skip the middle) for 60mm or 80mm wave on the front, standard gliders on the back. The 61.2mm front-to-middle gap suits 60mm wave or standard gliders only, not 80mm. |
| 2 x Single Profile Size 2 x Single Tracks (46.8mm each) |
Allows 2 curtains with wave gliders if spaced correctly: 8 to 10cm from wall for first track, 16 to 20cm between tracks. |

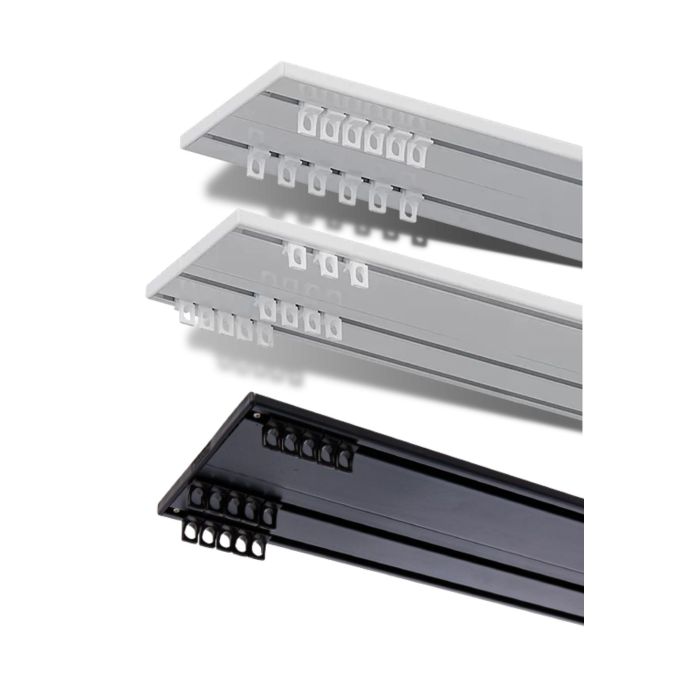

About the Multi Channel Curtain Track
- Reversible design for use as a 2 or 3 channel track.
- Slim 8mm profile thickness.
- Easy ceiling installation with 4.5mm pre-drilled holes.
- White, anthracite or black finishes available.
- Compatible with heavy duty components.
- Maximum fabric weight: 15kg per running metre.
- Optional pelmet profile for a neat finish.
- Covered by our 10-year guarantee.
About the Aluminium Profile
Powder-coated, lubricated aluminium extrusion for smooth and durable operation.
- Supplied in 3 metre lengths.
- One side features 3 channels (ideal for sheer + 2 blackout curtains with overlap to reduce light leakage).
- Reverse side features 2 channels (for traditional sheer + blackout setup).
Slim profile options
For low ceilings or minimal sight-lines, the 46.8mm profiles are the cleanest finish. Use the table above to confirm whether you need wave gliders.
Track options (diagrams)
These diagrams match the key profiles. Use them to confirm spacing, channels, and glider choice before ordering.
2-Channel Curtain Track Option (Profile 108mm)
3-Channel Curtain Track Option (Profile 108mm)
1-Channel Curtain Track Option (Profile 46.8mm)
2-Channel Narrow Curtain Track Option (Profile 46.8mm)
Frequently Asked Questions
Can I mount a multi-channel curtain track on the ceiling? ⌄
Yes. All our tracks are designed for ceiling mounting with pre-drilled holes.
What is the difference between a curtain track and a curtain rail? ⌄
A rail is decorative and visible, while tracks are slim and discreet with hidden gliders.
What is the best multi-channel track for heavy curtains? ⌄
Our aluminium multi-channel tracks support up to 15kg per running metre, suitable for lined and blackout fabrics.
Do you sell slim or low-profile curtain tracks? ⌄
Yes. The 46.8mm narrow profiles are ideal for low ceilings and minimalist interiors.
Can I use the 3-channel track for layering curtains? ⌄
Yes. A 3-channel system allows sheer + 2 blackout curtains for hotel-style setups.
Is a multi-channel curtain track suitable for hotels and commercial sites? ⌄
Yes. The reversible 2/3-channel design is widely used in hotels, healthcare and education settings where sheer and blackout layers need to run on one discreet ceiling-mounted track.
What is the maximum curtain weight for a multi-channel track? ⌄
Up to 15kg per running metre. If your curtains exceed this, our heavy-duty or contract track ranges are a better fit - get in touch and we'll confirm the right spec for your fabric weight.
Can wave curtains be used with a multi-channel track? ⌄
Yes. For 80mm wave, use the 3-channel profile with the front and back channels only (skip the middle), giving 91.6mm of clearance. The 61.2mm gaps — the 2-channel profile, or front-to-middle on the 3-channel profile — are only wide enough for 60mm wave, not 80mm.
Is the multi-channel curtain track covered by a guarantee? ⌄
Yes. Every multi-channel curtain track comes with our 10-year guarantee on the track and components.
Curtains for Multi-Channel Track Layering
Whichever channel configuration you choose, these curtain ranges are built to layer cleanly on a multi-channel track - sheer, blackout, or a wave-compatible front channel.
Wave Curtains
Designed for the front channel of a 3-channel track (used with the back channel, middle skipped), for a clean modern header style.
Blackout Curtains
Pair with a sheer on the second or third channel for superior light control in bedrooms, hotels and media rooms.
Made to Measure Curtains
Custom sizing and commercial-grade fabrics for any channel combination.
Related curtain track ranges
This heavy duty multi channel curtain track is part of our professional metal track ranges. Explore similar options below.
| Features | Standard Gliders, 60 or 80mm Wave |
|---|---|
| Operation | Hand |
| Weight Guide | Medium - Heavy 20kg |
| Delivery | 5-7 Working Days |
How to Install Curtain Rails & Blinds into Plaster Board
How to Calculate Curtain Weight?
How to Measure for Wave Curtains - What are Wave Curtains
How to Measure for a Ceiling-Fixed Curtain Track?
How to Measure for a Wall-Fixed Curtain Track?
How to Measure for a Recess Fitted Blind
Customer Product Reviews
5.0
100% of customers recommend this product
Share your thoughts with other customers
Top customer reviews
Reviews with images
Images in this review
-
Great company to deal withGreat company to deal with. I purchased a curtain track and it is high quality. Would highly recommend their product. Fast customer service.0 people found this helpful
-
Good experienceGood website - easy to use. Product delivered as described. Lead time reasonable given it was a bespoke product. Delivery service very good. Communication excellent. I had a small issue which was dealt with promptly, professionally, and very much to my satisfaction. I would use this company again if I needed their products.0 people found this helpful
-
Great service, fast responseThe measure of a good company is really how they respond when things go wrong. We ordered two curtain tracks, one of the plaster-in and critical path for plastering on our renovation. They arrived on time but the plaster-in track was wrong - surface mount instead. Jane and the team at D-F sent out a replacement same day as we reported it and it was on site 2 days later at no extra cost - excellent service, can't thank them enough for keeping us moving! Quality of everything was as described, well packed and all you'd hope for.0 people found this helpful
-
Great to do business with.I have used direct fabrics in the past for my curtain rails and have always received a great service and this time is no different. My tracks arrived on time and are a great fit. When I order, I speak to Jane who makes sure my order is exactly what I want. Excellent company to do business with and have great heavy duty products.0 people found this helpful
-
Very fast delivery- quality curtain…Very fast delivery- quality curtain rails!!!0 people found this helpful
-
Really helpful customer serviceReally helpful customer service - would highly recommend. I've not received my items yet but I'm pretty hopeful!0 people found this helpful
-
The track is ruddy perfectThe track is ruddy perfect. Works a dream, super discreet and easy as pie to fix to the ceiling. Also the communication from the team was flawless. It also turned up sooner than expected. All round fab.0 people found this helpful
-
Great quality railGreat quality rail. Easy to instal and just perfect for inside bay window0 people found this helpful
-
Easy, Accurate, Quick!Such an easy process! We had incurred issues with another company who cut our curtain rails to the incorrect size three (!) times or sent us curtain rails that were different shades of white! With Direct Fabrics, we received the correct curtain rails, in the correct colour first time!! I wish we just came here from the beginning.0 people found this helpful
-
Very happy with our curtain...Very happy with our curtain, quality product and good customer service.0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
