G 2900 Series 5 Options Multi Channel Flat Track System
Made To Measure
Medium Weight
British Made
5 Year Guarantee
G 2900 Series 5 Options Multi Channel Flat Track System
Made To Measure
Medium Weight
British Made
5 Year Guarantee
2 Weeks or Less - Manufactured to Order
UK Mainland Over £250
FREEGoelst 2900 Series Multi-Channel Curtain Tracks: Combine Sheers + Curtains on One Rail
Designed for ease of installation, the 2900 series offers multi-channel profiles for hanging a combination of sheers and light or medium-weight curtains on a single track. Discreet in appearance, particularly when ceiling fixed.
Simple Installation
Top fix only into ceiling
Medium Duty
Guideline up to 10kg
Made to Measure
Everything to your exact size
Exceptional Quality
Aluminium profile with standard gliders
Hand Operated
Pull across by hand
Complete Kit
Everything for 1 installation
Warning: This track is not compatible with wave curtains. The spacing is not sufficient to allow for a 60mm or 80mm wave. You need a minimum of circa 8cm clearance for the wave pleat to fit correctly.
Why choose the 2900 multi-channel range
- Ideal for combining sheers and light or medium-weight curtains
- Creates a clean overlap between curtain layers
- Mount one track and run multiple channels
- Low profile height of 8mm makes the track barely visible
- Concealed ceiling mounting or window opening installation for a discreet finish
- Track includes gliders and end caps
Used successfully in the hotel and leisure sector, and suitable for contract domestic use. Particularly discreet when ceiling fixed.
Maximum supported weight depends on fixing points and support spacing. Add an extra support point where pleated curtains gather when open.

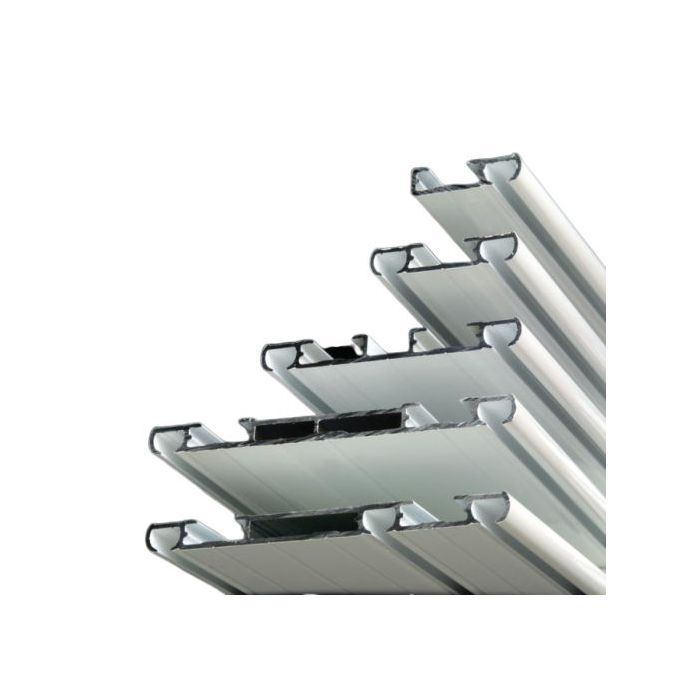

Profiles in the 2900 series
Choose your channel count and width based on the layers you need (sheers, main drapes, blackout) and available ceiling space.
2901: 2 Channel Curtain Track
Create a neat overlap with a barely visible 8mm profile. Suitable for private and corporate projects. The high-quality materials allow pleated curtains to run silently and smoothly.
- Ceiling mounting, in a window opening or with adjustable extension brackets
- Standard colour: white
- Lengths: 4m and 6m
- High-quality coated aluminium
- Suitable for light or medium-weight curtains
- Material: aluminium
- Coating: white RAL9010 (wear-resistant, colourfast, UV-resistant)
- Dimensions (h x w): 8 x 40mm
- Profile weight: 274 gr/m
- Max supported weight: see fixing guide. Add extra support where curtains gather when open.
2904: 2 Channel Curtain Track
Ideal for combining sheers and main drapes with one track and two rail channels. Quickly and easily mounted on a ceiling or in a window opening.
- Concealed ceiling mounting or in a window opening with space brackets
- Standard colour: white
- Lengths: 4m and 6m
- High-quality coated aluminium
- For light or medium-weight curtains
- Material: aluminium
- Coating: white RAL9010 (wear-resistant, colourfast, UV-resistant)
- Dimensions (h x w): 8 x 71mm
- Profile weight: 488 gr/m
- Max supported weight: see fixing guide. Add extra support where curtains gather when open.
2905: 2 Channel Curtain Track
The ideal profile for combining sheers and main drapes in a discreet 8mm height track. Suitable for concealed ceiling mounting and also window openings (including tilt-and-turn windows).
- Ideal for combining sheers and light or medium-weight curtains
- Concealed ceiling mounting
- Suitable for mounting in window openings (tilt-and-turn windows)
- Standard colour: white
- Lengths: 4m and 6m
- High-quality coated aluminium
- Material: aluminium
- Coating: white RAL9010 (wear-resistant, colourfast, UV-resistant)
- Dimensions (h x w): 8 x 100mm
- Profile weight: 732 gr/m
- Max supported weight: see fixing guide. Add extra support where curtains gather when open.
2906: 3 Channel Curtain Track
Ideal for combining sheers and (blackout) curtains with three rail channels in one track. Low profile 8mm height keeps the track barely visible. Mounted on a ceiling or in a window opening.
- Ideal for combining sheers and light or medium-weight curtains
- Concealed mounting on a ceiling or in a window opening
- Suitable for mounting in window openings (tilt-and-turn windows)
- Standard colour: white
- Lengths: 4m and 6m
- High-quality coated aluminium
- Material: aluminium
- Coating: white RAL9010 (wear-resistant, colourfast, UV-resistant)
- Dimensions (h x w): 8 x 100mm
- Profile weight: 741 gr/m
- Max supported weight: see fixing guide. Add extra support where curtains gather when open.
Maximum supported weight guideline: see fixing guide [link]. An additional support point is recommended where pleated curtains gather when open.
| Weight Guide | Medium - Heavy 20kg |
|---|---|
| Delivery | 2 Weeks or Less - Manufactured to Order |
| Operation | Hand |
How to Install Curtain Rails & Blinds into Plaster Board
How to Calculate Curtain Weight?
How to Measure for a Ceiling-Fixed Curtain Track?
How to Measure for a Wall-Fixed Curtain Track?
How to Measure for a Recess Fitted Blind
Customer Product Reviews
Top customer reviews
-
Thank you.Great communication and everything as expected. Thank you.0 people found this helpful
-
SolutionI was in contact with Direct Fabrics, specifically Jane for many months. She offered advice on our complex set-up and was patient with our questions. We ended up with a sound-deadening solution for our open-plan design studio. There was an error in our curtain track and this was resolved instantly. Would be happy to recommend it.0 people found this helpful
-
Excellent item and excellent serviceCurtain track was delivered in a couple of days and was packed with great care so it arrived in perfect condition. Excellent item and excellent service.0 people found this helpful
-
Absolutely fantastic curtain rail.Absolutely fantastic curtain rail. Our windows go all the way to the ceiling with no space to hand a curtain pole or rail. This curtain rail is so thin it's virtually invisible and allows us to open our windows after installation. The sliders look extremely good, as well. We're very pleased.0 people found this helpful
-
Nice productNice product Very quickly delivered Securely packaged Only beef could be the amount of bubble wrap used0 people found this helpful
-
Honestly, I have to give it to the team at direct fabrics.Honestly, I have to give it to the team at direct fabrics. I was unsure about measurement such as how much gap I should leave between the 2 channels in the curtain track. However the team of great people helped me with all of these. I was a chaos, since my move in date to my new flat was in a week. I was anxious becuase my new place has really wide floor to ceiling windows and it's facing residential blocks, so it proper lacks privacy. On top of that, my order typically takes 15 working days so I knew that my curtain track would be delivered a week or 2 after I have moved in. After emailing the team about this, they delivered my order before I moved my move in date and I couldn't be more grateful. I want to give notable thanks to Georgina Thompson, Lizzie Hudson-Jones and the rest of customer service that I missed. Once I have installed the curtain track and I used it for a week or so, I'll be back with an update on the item itself. ☺️ Thanks Maya0 people found this helpful
-
Excellent CollaborationExcellent Collaboration, great quality curtain track0 people found this helpful
-
Great products, even better customer service.Great products, even better customer service.0 people found this helpful
-
Good customer ServiceGood customer Service0 people found this helpful
-
I always buy somethingI always buy something, delivery is fast. Thanks you0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
