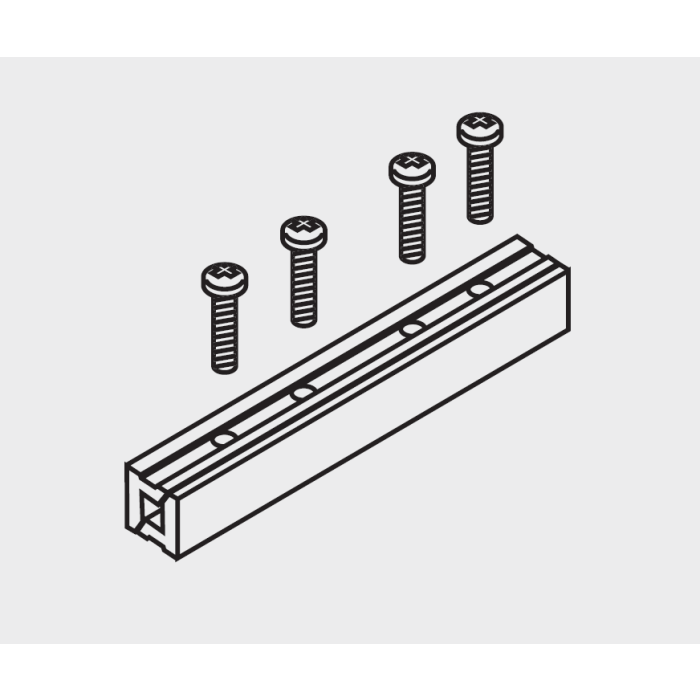

FREEInner Track Joiner for Cubicle Curtain Track: Connect Two Track Lengths
Inner track joiner designed to connect two lengths of cubicle curtain track, providing a simple method of joining track sections on site.
Track Joining
Connects two cubicle track lengths
Consistent Fit
Designed for use within compatible track profiles
On-site Assembly
Useful when extending or joining runs
Cubicle Systems
Specified for privacy curtain track installations
Specifier Friendly
Simple component for track schedules and replacement
Spec Tab
Drawings and details (if applicable) in the spec tab
Expectation setting: This is a track accessory used to join two track lengths. It does not provide blackout, privacy, or flame retardancy performance on its own. Track compatibility and installation details should be confirmed in the specification tab.
What the inner track joiner does
This inner track joiner is used to connect two lengths of cubicle curtain track. It is intended for use where a longer run is required or where track sections are installed in separate lengths and joined during installation.
It is a straightforward component for maintaining continuity of the track run, supporting practical installation and future replacement where track sections may need to be separated and re-joined.
Product-specific details, drawings, and any available certificates or installation guidance are provided in the specification tab.
Where this fits in our range
This is a joining accessory for cubicle curtain track systems. Choose it when you need to connect two track lengths in a continuous run. For bends, end stops, carriers, or ceiling fixings, select the relevant track components from the same system range.
Best suited for
- Joining two straight lengths of cubicle curtain track in a longer run
- Healthcare privacy curtain track installations and maintenance
- Contract refits where existing track sections are being extended or replaced
Who uses this cubicle curtain track joiner
Typically specified for cubicle curtain track installations where track runs are supplied and installed in multiple lengths. Commonly used in healthcare environments and other contract settings that require privacy curtain systems.
This component is also used during maintenance and refurbishment work where track sections need to be joined as part of a replacement or extension.
Contract context
Used as part of a cubicle curtain track system in contract interiors. Any system-specific requirements, installation guidance, and documentation are available in the spec tab.
Technical specifications
Technical gap in supplied content: No dimensions, material, finish, compatibility notes, or relevant standards were provided for this joiner. The table below reflects only what is confirmed.
| Product Type | Inner track joiner |
| Use | Connects 2 lengths of cubicle curtain track |
| Standards / Certification | Not specified in provided description |
Where available, installation guidance, drawings, and any relevant certificates are provided in the specification tab for this product.
| Delivery | 3 - 5 Working Days Delivery |
|---|---|
| Flame Retardant | No |
How to install cubicle tracks on suspended ceilings?
How to Install Cubicle Curtain Tracks?
How to Install Curtain Rails & Blinds into Plaster Board
How to Measure for a Ceiling-Fixed Curtain Track?
How do I calculate how much curtain fabric I need?
Customer Product Reviews
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
