V Hanger for Cubicle Curtain Track 1000mm
Heavy Weight
Easily Cut Down
V Hanger for Cubicle Curtain Track 1000mm
Heavy Weight
Easily Cut Down
3 - 5 Working Days Delivery
UK Mainland Over £250
FREEV Hanger Suspension Rod Kit: Ceiling Support for Cubicle Curtain Track
V Hanger suspension rod kit used with cubicle curtain track to increase stability where additional ceiling support is required. Commonly specified at free-hanging track ends and on U-shaped cubicle track layouts.
Adds Stability
Provides additional ceiling support to help steady the track.
Track Compatible
Designed for use with cubicle curtain track systems.
Complete Kit
Replacement kit supplied with brackets and rods.
U-Track Support
Often used on U-shaped layouts and return ends.
Cut to Length
Minimum cut length stated as 200 mm.
Rod Length
Supplied with two 1 m tubes.
Expectation setting: This kit is intended to add ceiling support and stability to cubicle curtain track. It is not a track kit and does not replace the need for correctly specified brackets and fixings for the installation surface.

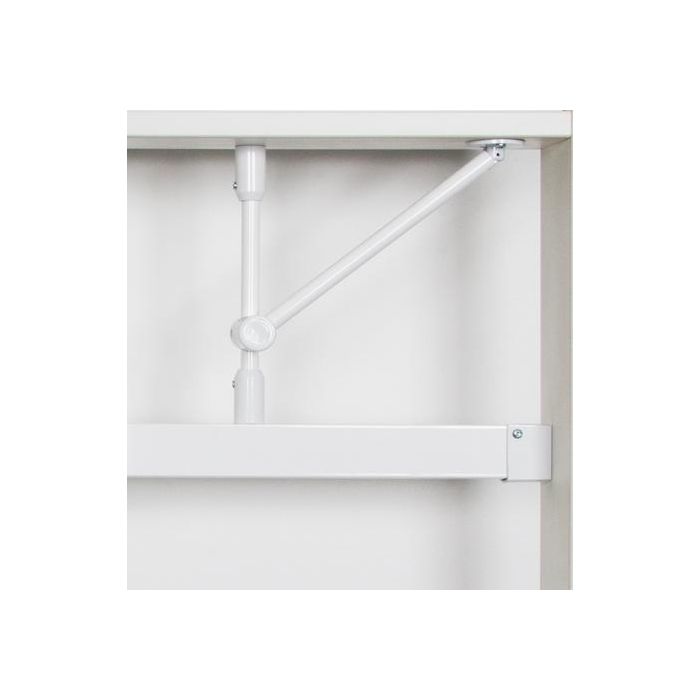

V hanger suspension rod kit overview
The V Hanger suspension rod kit is used in conjunction with cubicle curtain track to provide added stability where additional ceiling support is required. It is typically specified at free-hanging track ends and is also commonly used on U-shaped cubicle track runs.
This replacement kit includes the components required to connect the suspension assembly to the ceiling and to the track, including a swivel bracket, straight ceiling support and connecting brackets, plus two 1 m long tubes.
For certification-critical installations, washing instructions and any applicable documentation are available in the specifications tab.
Where this fits in our range
Use this V Hanger kit when a cubicle curtain track installation needs extra ceiling support to improve stability, particularly at unsupported ends or on U-shaped layouts. It sits alongside our cubicle track and bracket options as a support accessory rather than a primary fixing method.
Best suited for
- Cubicle track runs with free-hanging ends requiring added support
- U-shaped cubicle curtain track layouts
- Healthcare and clinical cubicle installations where track stability is a priority
Who uses V hanger suspension rod kits
Typically specified by installers and facilities teams when fitting cubicle curtain track systems that require additional stability at the end of a run or across U-shaped layouts.
Commonly used in healthcare environments where cubicle curtain tracking is frequently opened and closed and stability is required over time.
Technical specifications
| Kit contents | Swivel bracket, straight ceiling support, connecting brackets to the track, 1 m long tubes × 2 |
| Minimum cut length | 200 mm |
| Track fixing section | 25 mm |
| Ceiling fixing section | 38 mm |
Installation guidance and any applicable certificates are available in the specifications tab where provided.
| Delivery | 3 - 5 Working Days Delivery |
|---|---|
| Flame Retardant | No |
What are the different curtain heading options?
How to install cubicle tracks on suspended ceilings?
How to Install Cubicle Curtain Tracks?
How to Install Curtain Rails & Blinds into Plaster Board
Can I return made-to-measure curtains?
How to Measure for a Ceiling-Fixed Curtain Track?
What is Curtain Fullness & What Fullness will my Curtains be?
Customer Product Reviews
Top customer reviews
-
0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
