Main image Click to view image in fullscreen Heavy Duty Corded Curtain Track

Best seller

Heavy Duty Stage Curtain Track | Cord Operated | HDST | Thick Cord | 60kg Curtains

5.0 (5)

Happy Customers

Made To Measure

Heavy Weight

British Made

5 Year Guarantee

Heavy Duty Stage Curtain Track | Cord Operated | HDST | Thick Cord | 60kg Curtains

5.0 (5)

Happy Customers

Made To Measure

Heavy Weight

British Made

5 Year Guarantee

Total Cost:

Choose your options

Room Reference

Length cm

Mechanism

Mounting Height of Track From Floor

Operation Side

Fixing

Glider Stacking

End Caps

No of Pieces

Total Cost:

Estimated Delivery

3 - 5 Working Days Delivery

UK Mainland £5.99

UK Mainland Over £250

FREE

Other Location Delivery Info

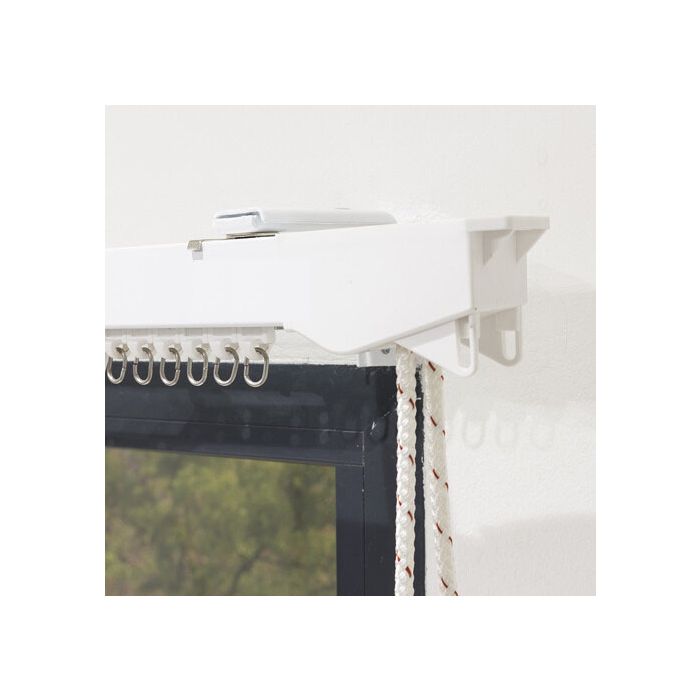

Heavy Duty Corded Curtain Track (Contract Grade)

A heavy duty, cord operated curtain track designed for large spans and high-traffic environments. Supplied made to measure as a complete kit, with smooth roller runners and a thick nylon cord for dependable operation in commercial and domestic installations.

Key Benefits Overview Mounting Options Technical Specs Video Fitting PDF

Important

This track is designed for corded operation using a thick nylon cord. For best performance on large spans, keep fixing centres within the recommended maximum and use the correct fixings for your ceiling or wall substrate.

Key Benefits

Simple Installation

Top fix or wall fix

Heavy Weight

Heavy duty to 65kg

Made to Measure

Everything to your exact size

Exceptional Quality

Aluminium profile + standard gliders, contract duty

Cord Operated

Pull cord to open and close

Complete Kit

Everything for 1 installation

Cord Drawn Track for Large Spans and Heavy Curtains

This heavy duty white aluminum track can be used for most large/heavy curtain applications, both commercial and domestic, requiring cord drawn operation.

Although best suited for top-fix mounting, this heavy-duty system track is designed for large curtain spans in both top and face-fix scenarios.

Perfectly suited to bespoke curved applications and used regularly in lecture theatres and large stage areas.

Designed for use with large or heavy curtains within theatres and large stage areas. The heavy-duty cord drawn curtain track is a top-fix track as standard but can also be used for face fixing. Supplied with heavy-duty roller runners and can be used for curved applications.

Quick Checklist

Top or face-fixed
12 roller runners per linear metre
Can be curved

This curtain track has a thick nylon cord that allows for simple operation.

Best for

Lecture theatres and auditoriums
Stage curtains and large spans
Commercial environments requiring corded control
Domestic installations where weight and span demand a contract-grade solution

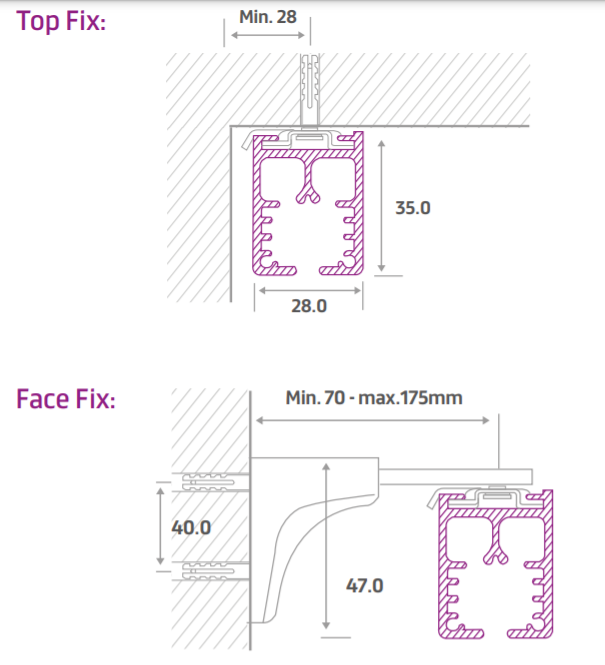

Mounting Options: Top Fix vs Wall Fix

This track can be mounted to the ceiling (top fix) or to the wall (face fix). For long spans and heavy curtains, ceiling fixing is typically preferred where possible for maximum stability.

Top Fix (Ceiling Mounted)

Best suited for large spans and heavy installations
Common choice for stage curtains, lecture theatres and halls
Typically offers the cleanest finish

Face Fix (Wall Mounted)

Ideal where ceiling fixing is not possible
Useful above openings, recesses and boxed ceiling areas
Ensures cord operation remains accessible and practical

Technical Summary

Code	Description	Fixing Centres (Max.)	Bend Compatibility	Radius (Min.)	Arch Compatibility
7700W	Cord Drawn	800mm	Yes	255mm	No

Fitting Instructions

Download the PDF guide for step-by-step installation and cord setup.

Features	Standard Gliders, 60 or 80mm Wave
Weight Guide	Stage 40kg+
Delivery	3 - 5 Working Days Delivery
Operation	Cord

5.0 (5)

Customer Product Reviews

5.0

5 reviews

Write a review

Share your thoughts with other customers

Top customer reviews

Reviews with images

Peter Fox

2 Aug 2023

Hall stage

Review

100%

Phoned to ask for advice, all questions answered fully and clearly. Ordered online, easy to understand. Delivery within a couple of days. All very good.

Was this review helpful?

0 people found this helpful
Sabrina Burke

11 Apr 2023

Highly recommend this company!

Review

100%

Alana was fantastic! Thank you for all your help, knowledge and expert guidance in helping me choose the correct curtain rail. Just superb! I would highly recommend using this company again.

Was this review helpful?

0 people found this helpful
Mary Stastny

9 Feb 2023

The price was competitive and the delivery quick.

Review

100%

Jane was friendly, efficient and very helpful. The price was competitive and the delivery quick.

Was this review helpful?

0 people found this helpful
customer (Imported from Trusptilot)

29 Nov 2022

Excellent customer service

Review

100%

From the initial contact for advise, the discount offered the order process and the delivery has been first class. Cannot comment on the product yet as its still to be fitted but by the visual appearance it looks great and will fit the needs of our village hall 100%

Was this review helpful?

0 people found this helpful

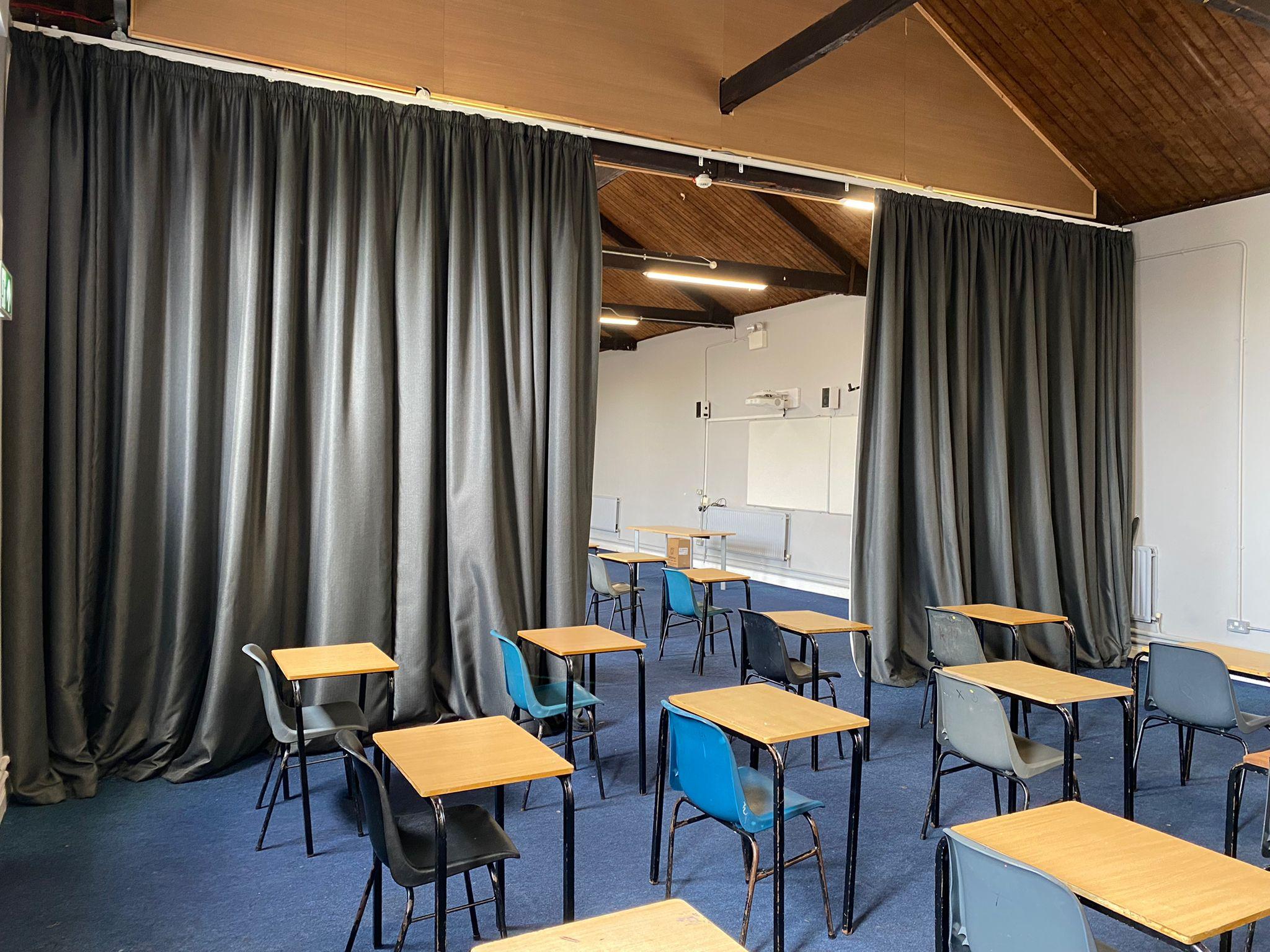

Middleton College (Image Submission)
