If you are ceiling fixing with wave gliders, allow for the wave pleat depth: 60mm wave allow 80mm from the wall, and 80mm wave allow 100mm from the wall. This prevents the wave from fouling the wall.
Ceiling or Wall Mounted Heavy Duty Curtain Track
Contract-grade, made to measure, hand drawn track designed for large and heavy curtains with smooth-running gliders and long service life.
Simple Installation
Ceiling or wall fixed
Heavy Duty
Supports curtains up to 60kg
Made to Measure
Manufactured to your exact size
Contract Quality
Aluminium profile and smooth gliders
Hand Operated
Manual draw operation
Complete Kit
All components for one installation
Quick spec and load guidance
Designed for large and heavy curtains in contract and domestic installations. Suitable for ceiling fixing or wall fixing.
Supplied with 12 roller gliders per linear metre. Each glider is rated to 1kg.
Example: 400cm track includes 48 gliders = up to 48kg supported curtain weight.
Note: overall performance depends on correct fixing into a suitable substrate using appropriate fixings.
Choose the right configuration
Ceiling fix for a cleaner finish, or wall fix using the bracket depth you need.
Standard gliders for traditional headings, or wave gliders for 60mm or 80mm wave curtains.
Tracks can be joined for extended runs (ideal for halls, stages and long windows).
Key features
- Heavy duty aluminium track rated for curtains up to 60kg
- Smooth-running heavy duty roller gliders
- 12 gliders per linear metre supplied as standard
- Each glider rated to 1kg load
- Suitable for ceiling or wall fixing
- Wave curtain compatible using 60mm or 80mm wave gliders
- Tracks can be joined to create extended lengths
- Supplied as a complete kit for one installation
- Available in white or black finishes
Schools, theatres, village halls, hotel bedrooms, and large domestic windows.
Installation video
Fixings are not supplied. Substrates vary. Use suitable screws and wall plugs for your surface.
Suitable applications
- Hotel bedroom curtains
- Theatre surround curtains
- Front-of-house stage curtains (typically up to 10m x 4m with double fullness, contact us to confirm)
- Village hall curtains
- School hall surround curtains
- Large domestic windows
Why choose this track
Chosen where reliability matters. Designed to support heavy curtains without flexing, binding or premature wear. Performs consistently in commercial and domestic settings.
Suitable for straight runs as standard and can be factory-curved for specific installations. Trusted in high-use environments where long service life is essential.
Mounting brackets
Choose ceiling or wall brackets to suit your fixing depth and installation requirements.

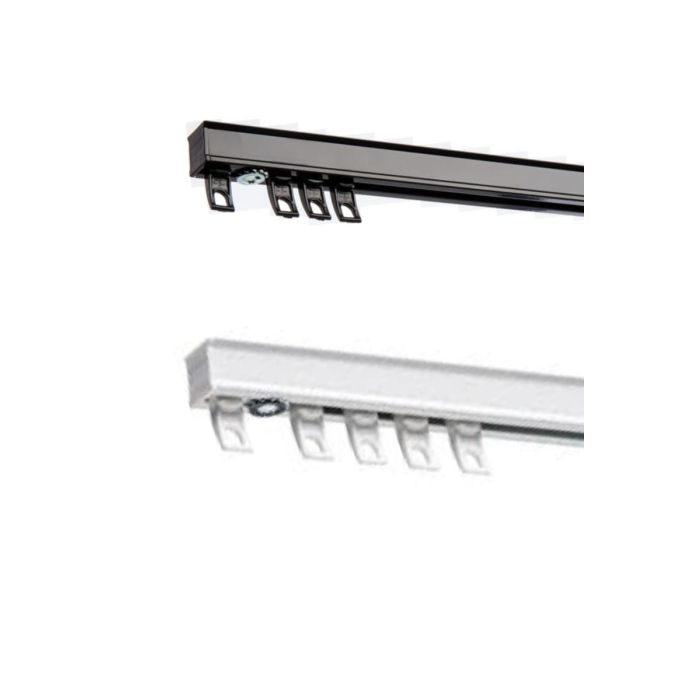

Contract track colours
Available in white or black finishes.

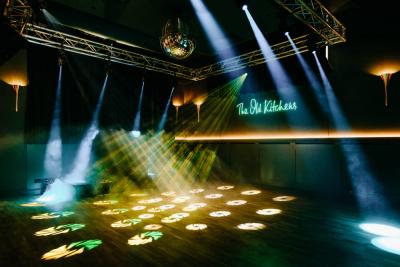

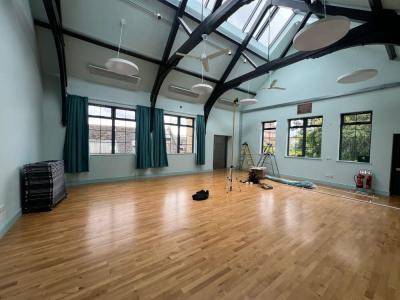

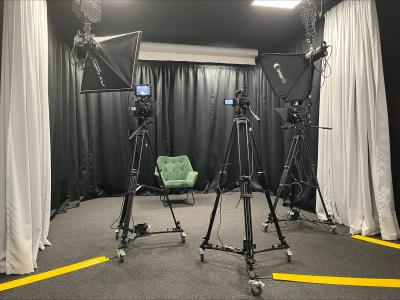

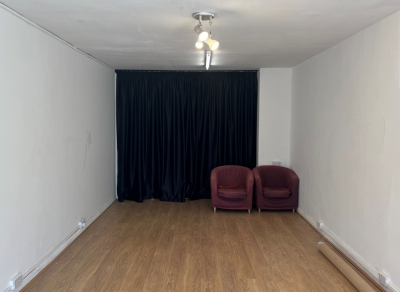

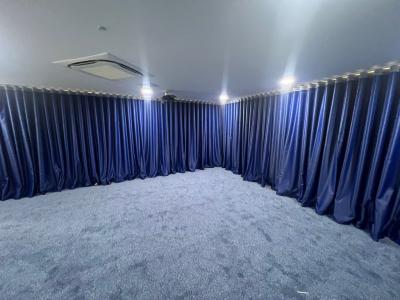

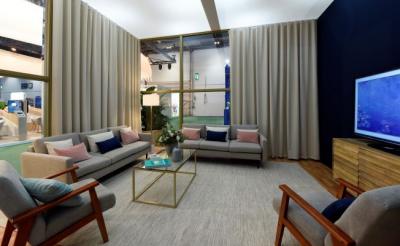

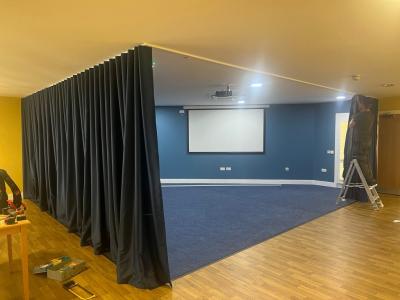

Testimonial images
Examples of real installations using this track.
| Features | Standard Gliders, 60 or 80mm Wave |
|---|---|
| Operation | Hand |
| Weight Guide | Stage 40kg+ |
| Delivery | 5-7 Working Days |
How to Install Curtain Rails & Blinds into Plaster Board
How to Calculate Curtain Weight?
How to Measure for Wave Curtains - What are Wave Curtains
How do I calculate how much curtain fabric I need?
Customer Product Reviews
Top customer reviews
Reviews with images
Images in this review
-
Great customer service and bespoke…Great customer service and bespoke curtains.0 people found this helpful
-

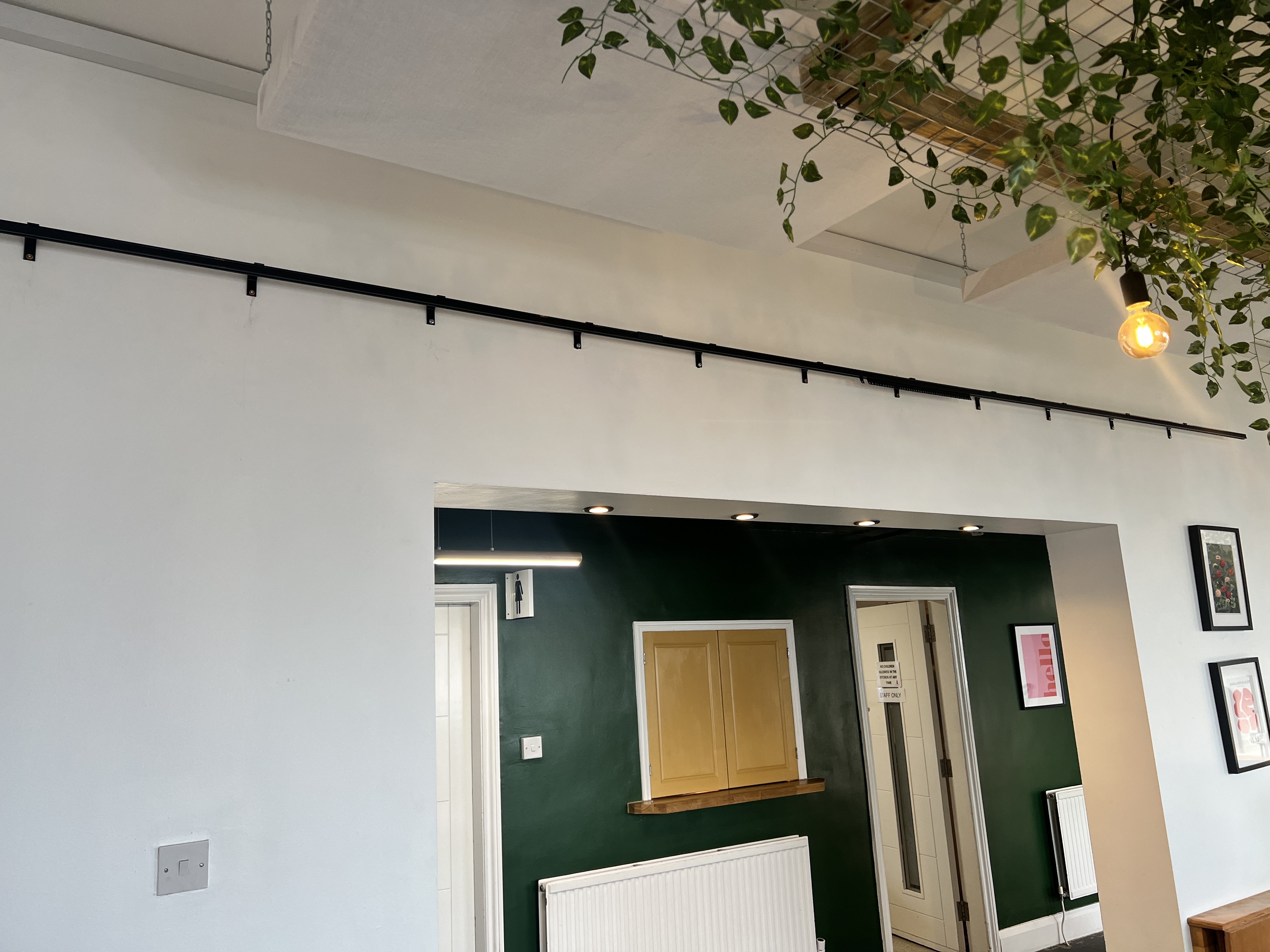

350cm Black Curtain TrackVery happy with the quality. Runs very well and heavy duty. Thank you
0 people found this helpful -
Fantastic!Georgina was really great. She guided me through the whole process with patience (I didn't realise ordering a big curtain could be so complicated!), delivery was quick, and the product is perfect. After being let down by another company the whole experience was a breath of fresh air. Thank you!0 people found this helpful
-

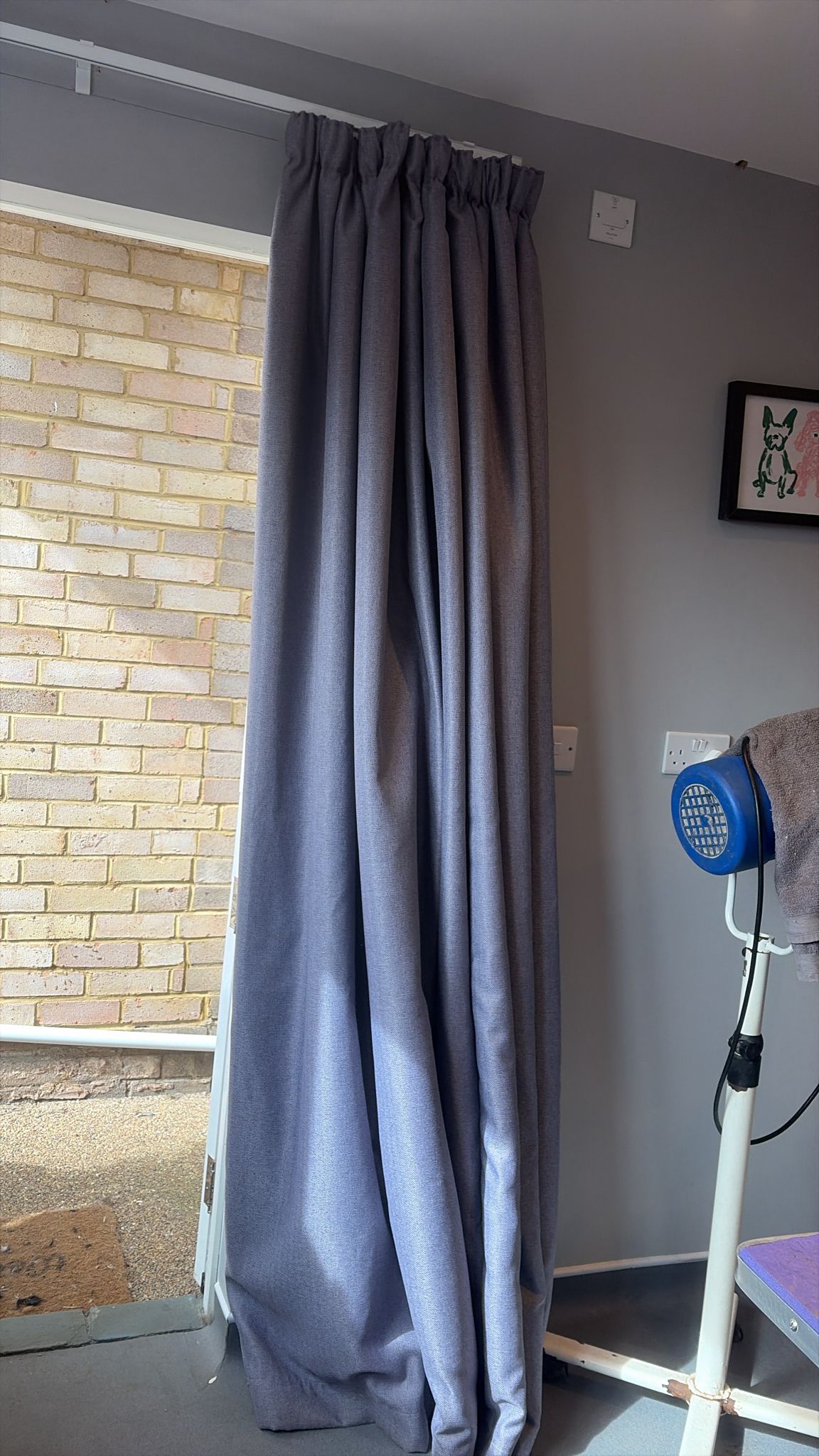

Photo SubmissionHeavy weight curtains with contract track
0 people found this helpful
-
Excellent products and companyI emailed for advice before purchasing curtains and rail, my emails were responded to quickly with very helpful advice. The quality of the products is excellent. The tradesperson who put up the rail and curtains was very impressed and asked for details of Direct Fabrics so he could recommend them to others.0 people found this helpful
-
We had a brilliant experienceWe had a brilliant experience! The curtains are high-quality, beautifully made and look amazing in our new business premises. They matched our design vision perfectly. Friendly, reliable, and professional service/advice from start to finish. Highly recommended for anyone seeking stylish, well-made window furnishings - a well deserved 5* experience.0 people found this helpful
-
They did what they said and look goodThey did what they said and look good0 people found this helpful
-
Prompt and helpful advice and a quality productPrompt and helpful advice, fabric samples sent and a quality product delivered. Helpful instruction videos on the website0 people found this helpful
-
Great voice on the phone ,good knolage…Great voice on the phone ,good knolage of the products and very helpfull0 people found this helpful
-
Thank you Jane for always solving my…Thank you Jane for always solving my queries!0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
