Wave Style Curtain Track Heavy Duty Hand Drawn
Made To Measure
Heavy Weight
British Made
5 Year Guarantee
Wave Style Curtain Track Heavy Duty Hand Drawn
Made To Measure
Heavy Weight
British Made
5 Year Guarantee
3 - 5 Working Days Delivery
UK Mainland Over £250
FREEInstallation notice: When ceiling fixing and selecting wave gliders for wave curtains, allow clearance for the wave pleat. For 60mm wave we suggest leaving 8cm from the wall; for 80mm wave allow 10cm.

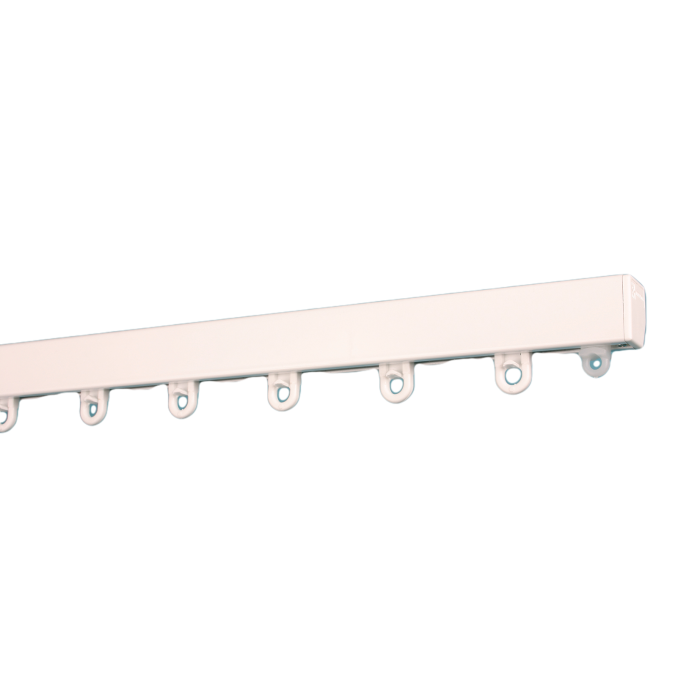

Wall or Ceiling Mounted Wave Curtain Track (Hand Drawn)
A heavy-duty, made-to-measure aluminium wave curtain track designed for hand-drawn operation. Suitable for wall (face fix) or ceiling (top fix) installation where a neat square-profile track and consistent wave heading are required.
Simple Installation
Top fix or wall fix
Heavy Duty
Up to 40kg
Made to Measure
Made to your exact size
Contract-Duty Profile
Heavy-duty aluminium
Hand Drawn
Pull across by hand
Complete Kit
Everything for 1 installation
Expectation setting: This is a wave track designed to work with wave gliders and wave curtains. Wave headings require the curtain to sit away from the wall; bracket projection and clearances should be planned at survey stage. Certificates and care/maintenance information (where applicable) are available in the specification tab.
Why choose our heavy duty wave curtain track
This made-to-measure hand-drawn wave curtain track is designed for installations where a clean, square-profile aluminium track and consistent wave presentation are required. It can be installed as a ceiling fix (top fix) or wall fix (face fix) depending on site conditions and required curtain position.
The track is intended for larger or heavier curtains. The runners are specified at 1kg per glider, and the system is described as suitable for up to 40kg total curtain weight (subject to correct fixing and substrate).
Supplied as a complete kit for one installation, this is a practical contract option for projects where survey accuracy, bracket positioning and glider spacing are key to the finished wave effect.
Video: fitting overview
Where this fits in our range
Choose this option where you need a hand-drawn wave system with made-to-measure sizing and a heavy-duty aluminium profile. It is suited to wave curtains where bracket projection and consistent glider spacing are required to achieve the wave effect.
Best suited for
- Wave curtains requiring controlled spacing and a consistent heading
- Contract environments needing a robust, hand-drawn solution
- Top fix (ceiling) or face fix (wall) installations
Key features
- Heavy duty aluminium track profile
- Hand-drawn operation
- Ceiling or wall fix bracket options
- Complete kit supplied for one installation
For specification-critical installations, confirm substrate, fixing method, and bracket projection at survey stage. Product documents are available in the specification tab.
Who uses our wall or ceiling mounted wave curtain track
Specified in contract and domestic settings where wave curtains are required, including schools, village halls, theatres and function rooms. Often used for hall curtains, surround curtains and larger window installations.
Where large curtains are planned, fixing quality and bracket positioning are essential. For stage and hall applications, speak to the team to confirm suitability for your sizes and curtain build.
Suitable applications
- Hotel bedroom curtains
- Theatre surround curtains
- Front-of-house stage curtains (speak to the team to confirm suitability)
- Village hall curtain tracks
- School hall surround curtains
- Domestic large windows
Benefits in practice
A practical wave system for larger curtains where a durable, hand-drawn track is required. Designed for top or face fixing and supplied as a complete kit for one installation. For curved requirements, discuss options with the team prior to ordering.
Glider option shown
80mm wave style glider
For wave style curtains only. 80mm spacing.
Brackets for wave curtains
Wave curtains need to sit away from the wall. Larger brackets are provided to accommodate this. For further help or information, contact the team regarding the extension wall fix bracket (100–150mm).
Useful notes on wave tracks
Wave effect is achieved by a set number of gliders on the track. If you have not already purchased curtains, consider waiting until the track is in position so you can confirm the required glider count on the curtains.
Technical specifications
| Mounting | Wall fix (face fix) or ceiling fix (top fix) |
| Operation | Hand drawn |
| Track material | Heavy duty aluminium |
| System capacity (as stated) | Up to 40kg total curtain weight (subject to correct fixing) |
| Runner capacity (as stated) | 1kg per glider |
| Wave clearance guidance | 60mm wave: 8cm from wall; 80mm wave: 10cm from wall |
| What’s included | Complete kit supplied for one installation |
When calculating the number of gliders, round up to the nearest larger size. If using pairs of curtains, halve the track length, then round up to the closest size. Example: track size 500cm → 500cm / 2 = 250cm; gliders will be for 264cm, thus 34 gliders per side.
Remember: With pairs of curtains, split the track length in two to determine the glider quantity per curtain.
| Track Length (cm) | Gliders per Track (Single Curtain) | Track Length (cm) | Gliders per Track (Single Curtain) | Track Length (cm) | Gliders per Track (Single Curtain) |
|---|---|---|---|---|---|
| 40 | 6 | 536 | 68 | 1032 | 130 |
| 56 | 8 | 552 | 70 | 1049 | 70 |
| 72 | 10 | 568 | 72 | 1065 | 72 |
| 88 | 12 | 584 | 74 | 1081 | 74 |
| 104 | 14 | 600 | 76 | 1097 | 76 |
| 120 | 16 | 616 | 78 | 1113 | 78 |
| 136 | 18 | 632 | 80 | 1129 | 80 |
| 152 | 20 | 648 | 82 | 1145 | 82 |
| 168 | 22 | 664 | 84 | 1161 | 84 |
| 184 | 24 | 680 | 86 | 1177 | 86 |
| 200 | 26 | 696 | 88 | 1193 | 88 |
| 216 | 28 | 712 | 90 | 1209 | 90 |
| 232 | 30 | 728 | 92 | 1225 | 92 |
| 248 | 32 | 744 | 94 | 1241 | 94 |
| 264 | 34 | 760 | 96 | 1257 | 96 |
| 280 | 36 | 776 | 98 | 1273 | 98 |
| 296 | 38 | 792 | 100 | 1289 | 100 |
| 312 | 40 | 808 | 102 | 1305 | 102 |
| 328 | 42 | 824 | 104 | 1321 | 104 |
| 344 | 44 | 840 | 106 | 1337 | 106 |
| 360 | 46 | 856 | 108 | 1353 | 108 |
| 376 | 48 | 872 | 110 | 1369 | 110 |
| 392 | 50 | 888 | 112 | 1385 | 112 |
| 408 | 52 | 904 | 114 | 1401 | 114 |
| 424 | 54 | 920 | 116 | 1417 | 116 |
| 440 | 56 | 936 | 118 | 1433 | 118 |
| 456 | 58 | 952 | 120 | 1449 | 120 |
| 472 | 60 | 968 | 122 | 1465 | 122 |
| 488 | 62 | 984 | 124 | ||
| 504 | 64 | 1000 | 126 | ||
| 520 | 66 | 1016 | 128 |
Further information: wave curtains and tracks
Product documents, installation guidance and any available certificates are provided in the specification tab.
| Features | 60 or 80mm Wave |
|---|---|
| Operation | Hand |
| Weight Guide | Heavy 20-40kg |
| Delivery | 3 - 5 Working Days Delivery |
| Flame Retardant | No |
What are my Curtain Lining Options?
What are the different curtain heading options?
How to Install Curtain Rails & Blinds into Plaster Board
Which Size Curtain Eyelet do i need for my poles?
How much space will my curtains take up when stacking back
How to Measure for Wave Curtains - What are Wave Curtains
How do I place an order?
What payment methods do you accept?
What are your delivery times?
What is your returns policy?
Can I return made-to-measure curtains?
How to Measure for a Ceiling-Fixed Curtain Track?
How to Measure for a Wall-Fixed Curtain Track?
How to Measure for a Recess Fitted Blind
What is Curtain Fullness & What Fullness will my Curtains be?
Customer Product Reviews
Top customer reviews
-
Excellent great ceiling curtain tracks service on curtain track for…Excellent service on curtain track for wave curtains. Bought before. Arrived in 3 days. Would buy again Excellent discrete fittings0 people found this helpful
-
Excellent Customer ServiceAll the staff were incredibly helpful and knew their products0 people found this helpful
-
Experience curtain makerI have been making curtains for 30 years. I have recently become self employed and had to order a track for wave curtains for the first time. The track was robust the size was spot on and the glider ratio was perfect. Hopefully more business in the pipeline and this is my go to company for rails.. Thank you for making a nice job stunning. Happy customer0 people found this helpful
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
