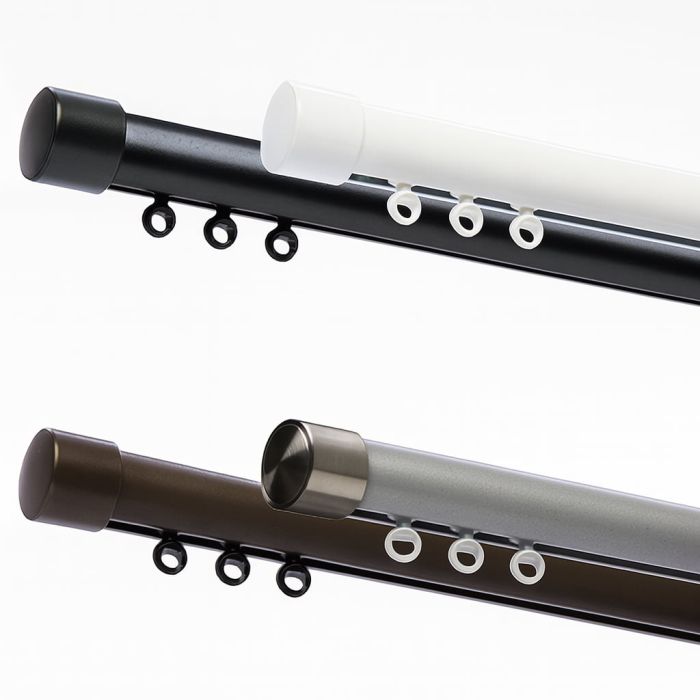

Designer Curtain Track / Pole Heavy Duty 28mm Pole Effect
3 - 5 Working Days Delivery
Simple Installation
Top fix or wall fix
Heavy Weight
Heavy Duty to 60kg
Made to Measure
Everything to your exact size
Exceptional Quality
Aluminium Profile with Lubricated Gliders - Contract Duty
Hand Operated
Pull across by hand
Complete Kit
Everything for 1 Installation
Features of the Heavy Duty Designer Hand Drawn Track
- Easy and quick assembly.
- Curtain Rod available in 28 mm (1,1”) thickness.
- Rod is bendable, both with an inside and outside corner with a 20 cm (7,9”) (20 mm (0,8”) rod) or 40 cm (15,7”) radius (28 mm (1,1”) rod).
- Colours: white (powder coated), inox (anodized), inox (powder coated), antique (powder coated), anthracite (powder coated), chrome, gold (anodized), taupe, bronze (anodized) (only CRS 28 mm) and black (powder coated)
- The brackets and end caps are available in white, stainless steel and gold.
- Rail quality: aluminium, chromated, powder coated.
- Carriers are anti-friction treated.
- Similar to Silent Gliss Metropole
Ceiling or Wall Mounted Heavy Duty Curtain Track - Designer Pole Style
The Direct Fabrics heavy-duty design led hand drawn curtain track can be top-fixed or face-fixed as standard. Its heavy-duty pole which is designed for curtains with hooks.is designed for use with large or heavy curtains. Heavy-duty runners are supplied at a quantity of 12 per linear metre.
The hand-operated is perfectly suited for heavy-duty contract environments, this track can take nearly anything and with good fittings can hold the heaviest of curtains.
This track is for both contract and domestic use and is a particular favourite for use in schools and theatres for backdrops and hall curtains. By using a heavy gage aluminium the track has an extremely durable and ideal for all uses.
Suitable Applications for Heavy Duty Hand Drawn Curtain Track
- Hotel Bedroom Curtains
- Theatre surround curtains
- Village halls curtain tracks
- School hall surround curtains
- Domestic Large Windows.
Benefits of our Heavy Made to Measure Hand Drawn Drawn Curtain Track:
This heavy duty white aluminium track can be used for many large / heavy curtain applications, both commercial and domestic, requiring Hand Drawn drawn operation. Suited for both top and face-fixing scenarios, including availability for use as a curved track, this bestselling Handdrawn solution finds a home in a wide variety of environments.

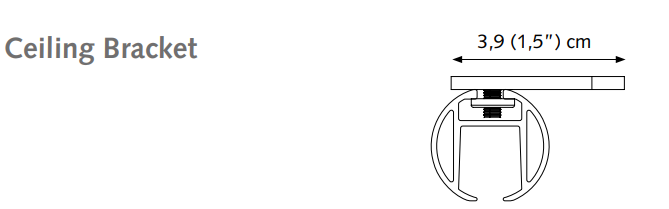

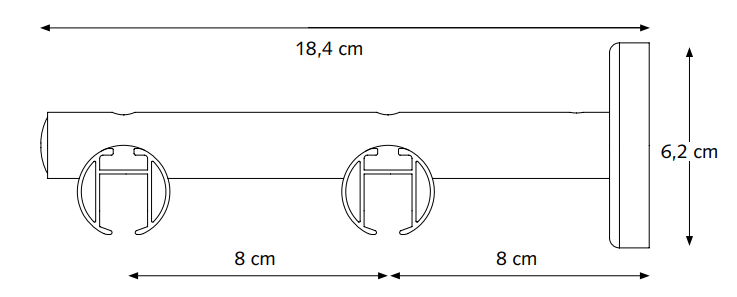

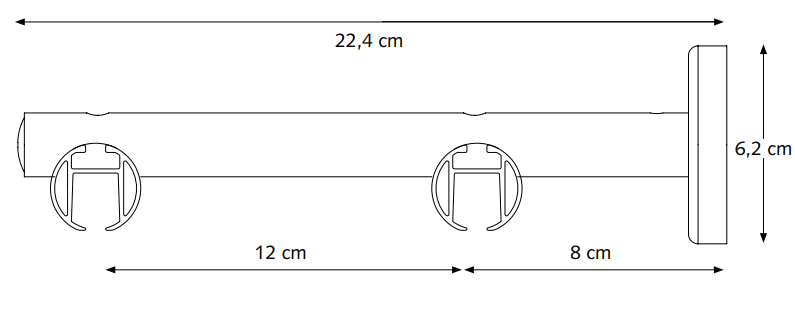

Mouting Brackets for Direct Fabrics Track

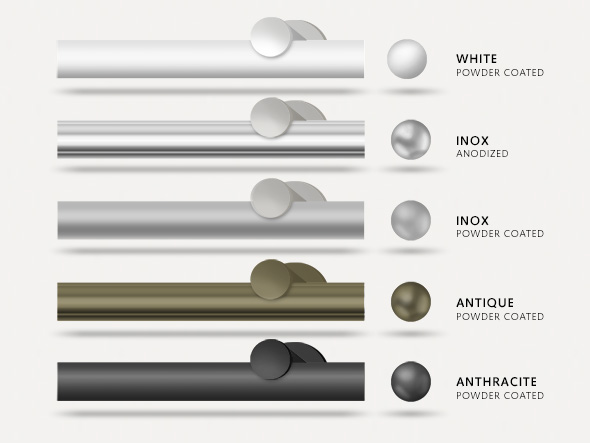

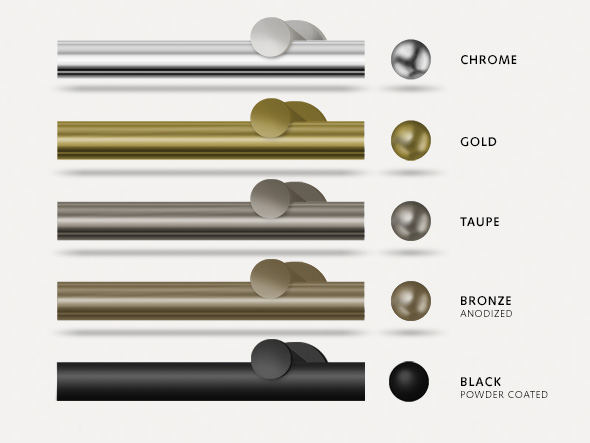

Colour Options for Designer Curtain Track
Fitting Instructions
Pull Cord Curtain Pole
The pull cord curtain pole is a versatile and convenient solution for controlling the opening and closing of curtains. Designed to offer ease of use and a stylish appearance, this type of curtain pole is ideal for both residential and commercial spaces.
The pull cord curtain pole features a cord mechanism that allows you to effortlessly open and close your curtains with a simple pull. This eliminates the need for manually handling the curtains, providing a smooth and hassle-free operation. Whether you have heavy or delicate curtains, the pull cord system ensures gentle movement without causing any damage.
With a pull cord curtain pole, you have complete control over the amount of light and privacy in your space. The cord can be adjusted to various lengths, allowing you to position the curtains precisely where you desire. This flexibility is particularly beneficial for large windows or doors that require wider curtain coverage.
Additionally, pull cord curtain poles are available in a wide range of materials, styles, and finishes, making it easy to find a design that complements your interior decor. Whether you prefer a traditional, rustic look or a sleek, modern aesthetic, there is a pull cord curtain pole to suit every taste.
Overall, the pull cord curtain pole offers convenience, functionality, and aesthetic appeal, making it an excellent choice for those seeking a practical and stylish solution for curtain control.
Customer Reviews
The curtains are lovely and very happy with the whole finish on our large span windows. The Iris curtains look amazing. Thank you

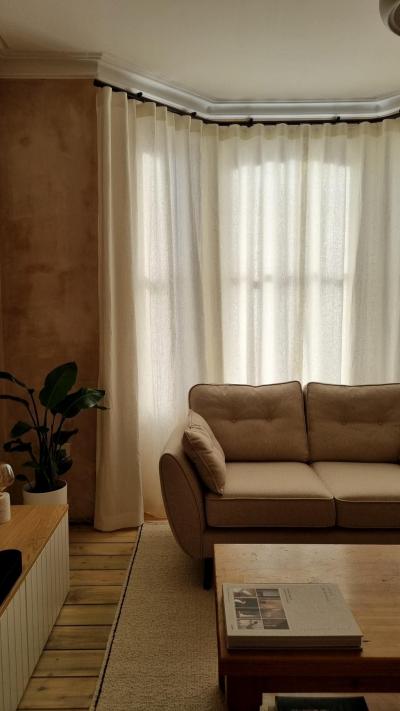

Edward and the team help me update an old bay window track to this design led pole. It is similar to the pole we purchased from John Lewis but less than half the price. Cannot believe how well it runs and thrilled with the finish. Thank you for all your help
The curtain pole holds our very heavy curtains to the entrance of our wedding venue and works well to cover the large doors which we cover before the bride and groom arrive. Wroks well for theatrical entrance
Fitted in an office. Simple to install.

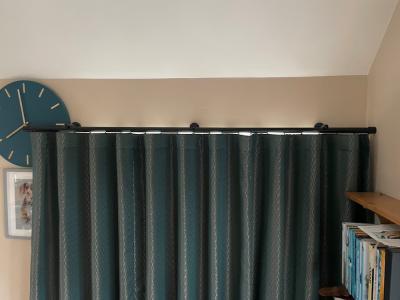

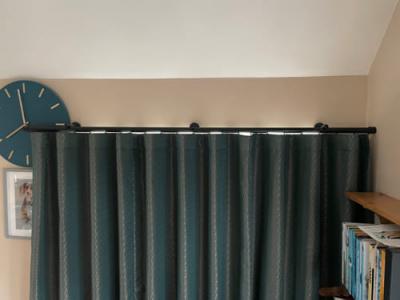

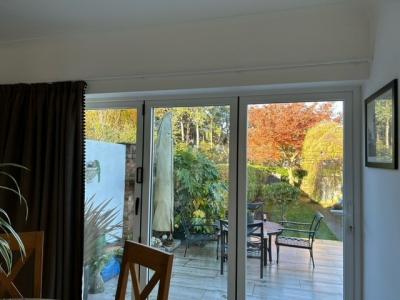

We couldn’t be happier with the Designer Pole you made for us.
We had bifold doors fitted and I wanted to have just one curtain and your pole is perfect.
Pics attached but not the best.
I was looking for a particular curtain pole for my bifolddoors, searching the internet I came across Direct Fabrics, who on their website had just what I was looking for so I contacted them, they were extremely helpful answered all my questions, so I placed an order,delivery was extremely quick packaged very well,all in all exceptional service.

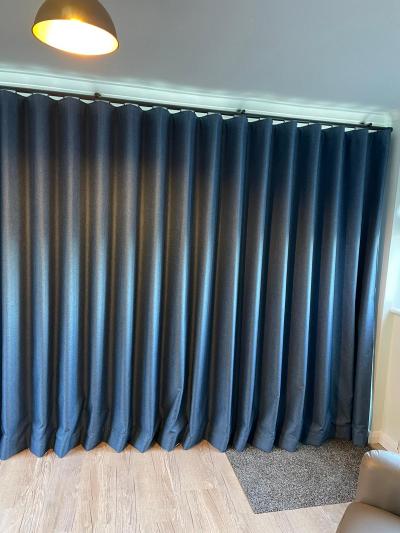

The team at Direct Fabrics were so helpful with all my questions about the pole for wave curtains going above my bifold doors. Very happy with the pole.
(Phone Testimonial from Customer)
This pole looks incredible and fits so well in my space. Exactly what i wanted. Thank you
Bought a 466cm designer pole in Anthracite. Very smooth operation
(Written up from phone testimonial from customer)
Additional Information
Composition | No |
---|---|
Flame Retardant Certified Rating | No |
Fabric Style | No |
Features | Standard Gliders, 60 / 80mm Wave |
Operation | Hand, Cord |
Weight Guide | Stage 40kg+ |
Delivery | 3 - 5 Working Days Delivery |
Washing / Cleaning Information Face Fabric | No |
Flame Retardant | No |
Instructions and Brochure | No |
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
Type of Curtains | Fitted On | Where to Measure from - to desired length |
Pencil Pleat Curtains | Curtain Track | Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
Pencil Pleat Curtains | Curtain Pole | Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
Eyelet Curtains | Curtain Pole – Only | Top of the pole *we add on the upstand to our curtains, |
Pinch Pleat Curtains | Curtain Track | The underside of the track |
Wave Curtains | Curtain Track Designer Pole | The glider underneath the track. The curtain will sit under the track. |
Acoustic Curtains | See Heading Style of Choice above | Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
