Main image Click to view image in fullscreen Recess Curtain Track Sunken in the Ceiling

Best seller

Hidden Recess Curtain Track (Ceiling Mounted)

5.0 (26)

Happy Customers

Made To Measure

Medium Weight

British Made

5 Year Guarantee

Hidden Recess Curtain Track (Ceiling Mounted)

5.0 (26)

Happy Customers

Made To Measure

Medium Weight

British Made

5 Year Guarantee

Total Cost:

Choose your options

Room / Reference

Colour

Order free swatch sample

Length in cm

Please enter numbers only

Fixing

Gliders

Glider Stacking

Total Cost:

Estimated Delivery

5-7 Working Days

UK Mainland £5.99

UK Mainland Over £250

FREE

Other Location Delivery Info

Important installation notes

Wave clearance: Leave 8 cm from the wall for 60 mm Wave, or 10 cm for 80 mm.
Fixings: Track is pre-drilled every 50 cm. Use screws with a 2.9 mm head for secure fixing into joists.
Long lengths: Tracks over 300 cm ship in multiple pieces. Gliders pass smoothly across joins.

Heavy Weight

Heavy duty to 30kg

Exceptional Quality

Aluminium profile with gliders, contract duty

Hand Operated

Pull across by hand

Complete Kit

Everything for 1 installation

Hidden Recess Curtain Track (Sunken Into Ceiling)

Transform your space with the sleek, modern look of a recess curtain track. Designed to sit within a ceiling cut-out, it delivers an invisible track appearance that is minimal, clean, and compatible with most interior styles, while ensuring smooth, reliable curtain operation.

Built from high-quality aluminium, the track is durable and versatile for shaped windows such as arches and circles. UV-protected clickable carriers help the curtain traverse smoothly and maintain straight, tidy pleats for both residential and commercial projects.

Compatible with Wave curtains when supplied with Wave gliders. For correct clearance, leave 8 cm from the wall for 60 mm Wave and 10 cm for 80 mm Wave.

Installer notes

Retrospective installs: cut a straight channel in the ceiling for a flush fit. If you prefer to avoid this, choose the ceiling mount alternative below.
New builds: fix into the joists first, then bring plasterboard neatly up to the track edge.

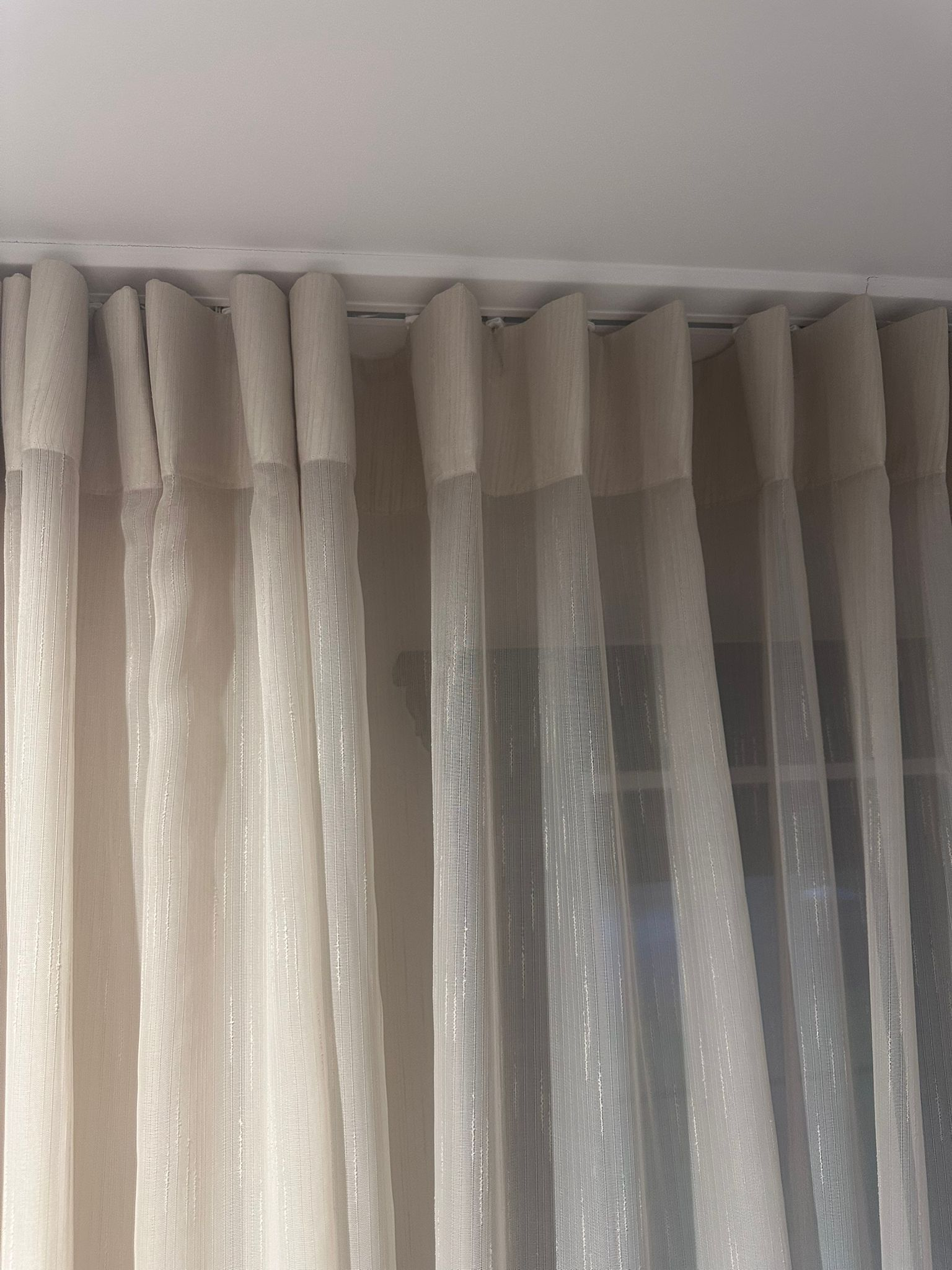

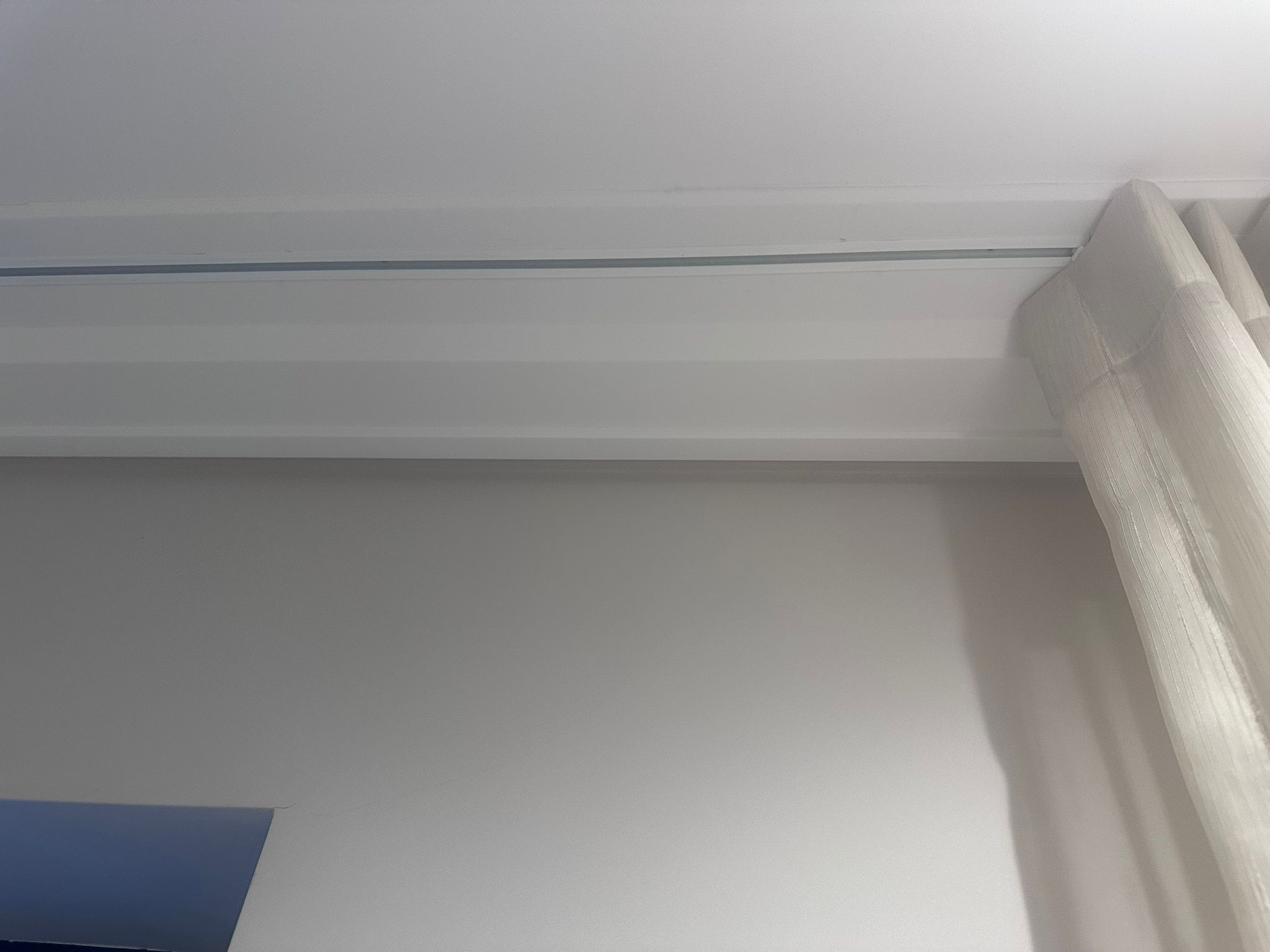

Hidden recess curtain track installed flush with the ceiling with Wave curtains — Example install: recess track with Wave heading.

Ceiling mount alternative (no groove required)

The slimline contract track uses a discreet profile and brackets for direct ceiling fixing. At under 2 cm deep, it is an easy-install option when you do not want to cut a groove in your ceiling.

Features of the recess curtain track (hand drawn)

Hand drawn system for medium weight draperies.
Ceiling installation with cover caps to conceal fixings.
Factory bendable (curves and reverse curves) to a minimum 10 cm radius, supplied to your template.
Suitable for circular, arch and triangle window shapes.
UV-protected clickable carriers for smooth travel and straight hanging pleats.
Maximum fabric weight: 8 kg per metre.
Powder coated finish with factory applied dry lubricant.

Recess curtain track in black finish — Black

Recess curtain track in white finish — White

Frequently asked questions

How does the track fit into the ceiling?

The track is pre-drilled for direct fixing to the ceiling structure. For the cleanest finish, install before plasterboarding so plasterboard can run neatly up to the track edge.

How much will the curtains stack back?

Stack back varies with fabric weight and heading. As a rule of thumb, pencil pleat stacks at around 20 to 25 percent of total width.

Is this track compatible with 60mm and 80mm wave curtains?

Yes. Select the correct Wave gliders for 60mm or 80mm Wave and we supply the gliders for the rail length.

Can this track be used in bay windows or curved spaces?

It is not bendable on site, but we offer factory bending based on your template or measurements.

Can I fit this track retrospectively?

Yes, but you will need to cut a straight channel into the ceiling for a flush fit. If you want to avoid this, choose the slimline ceiling mount alternative above.

Does the track come with gliders and end stops?

Yes, it is supplied as a complete kit. Additional accessories and spares are available separately.

Roomshots of recess curtain tracks

Compatible curtains for wave curtain tracks

Our wave curtain tracks pair well with a range of curtain styles. Browse our made to measure curtain options designed to work smoothly with wave systems for a premium, professional finish.

Wave Curtains

Modern flow and consistent spacing, designed to operate smoothly on wave tracks.

Blackout Curtains

Pair wave headings with blackout performance for superior light control.

Made to Measure Curtains

Create wave compatible curtains with custom sizing and commercial-grade fabrics.

Composition	Aluminium Tracks, Metal Brackets, Plastic Gliders
Features	Standard Gliders, 60 or 80mm Wave
Operation	Hand
Weight Guide	Stage 40kg+
Delivery	5-7 Working Days
