Curtain Track Joining Bar for Model 64,74, - Roller Runner Track - 1Pk
Curtain Track Joining Bar for Model 64,74, - Roller Runner Track - 1Pk
7 Working Day Delivery
UK Mainland Over £250

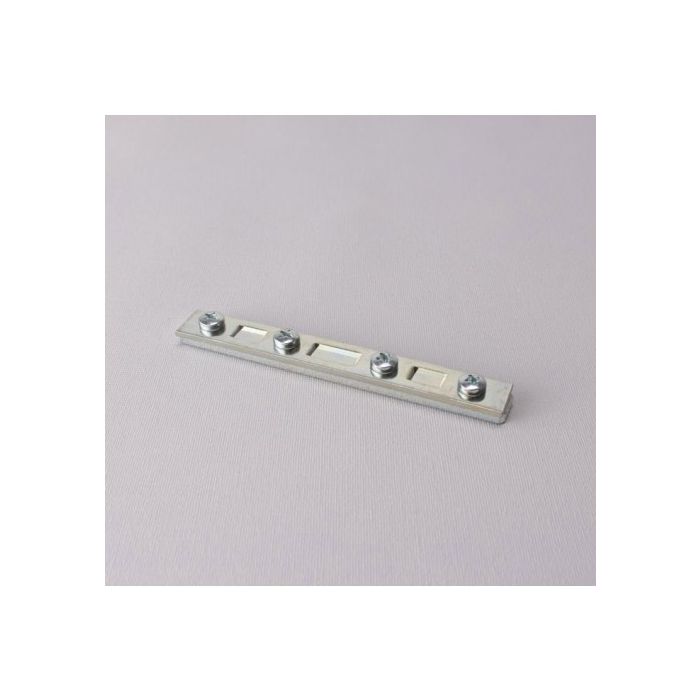

FREEJoining Bar for Curtain Tracks (Ref 64 & 74)
A joining bar designed to connect two compatible curtain track lengths together. Suitable for track references 64 and 74 where a continuous run is required.
Ref 64 / 74
Designed for track references 64 and 74
Joins Two Tracks
Connects two lengths to form one run
Project Practical
Useful where a longer run is needed
Hand / Wave
Compatible with ref 64 track options
Corded Track
Compatible with ref 74 cord-operated track
Spec-led
Confirm compatibility in the spec tab
Expectation setting: This is a track accessory to connect two track lengths. It does not provide blackout, shading, or privacy performance and does not change the operating method of the track system.
Joining two curtain tracks in one continuous run
Use this joining bar when you need to connect two compatible curtain track lengths together for a longer run. It is intended for use with track references 64 and 74.
For wave applications on reference 64, note that the wall 3cm brackets are not for wave. Use the extension bracket only where required.
Product documentation and any supporting technical information can be provided in the specifications tab.
Where this fits in our range
This is a track accessory used to extend or configure compatible track runs. If you are selecting a complete track system, choose the appropriate ref 64 or 74 track first, then add accessories as required.
Best suited for
Suitable for projects that require longer track runs using compatible systems, including general contract and commercial installations where ref 64 or 74 tracks are specified.
Compatible track options
- 74 – Cord Operated Curtain Track
- 64 – Hand Operated Curtain Track
- 64 – Wave Curtain Track Note: Wall 3cm brackets are not for wave. Extension bracket only.
Specifier note
If you are working to tight tolerances or coordinating multiple track sections, confirm site conditions, fixing points, and bracket selection during detailing. Supporting documents can be referenced in the spec tab.
Technical specifications
| Product type | Joining bar (track accessory) |
| Compatible track references | 64 and 74 |
| Notes | For ref 64 wave applications: wall 3cm brackets are not for wave. Extension bracket only. |
Any available installation guidance and supporting documents are provided in the specifications tab.
| Delivery | 7 Working Day Delivery |
|---|---|
| Flame Retardant | No |
How to Install Curtain Rails & Blinds into Plaster Board
How do I calculate how much curtain fabric I need?
Customer Product Reviews
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
