End Stops - Pair for Track 64 Roller Runner
7 Working Day Delivery
UK Mainland Over £250

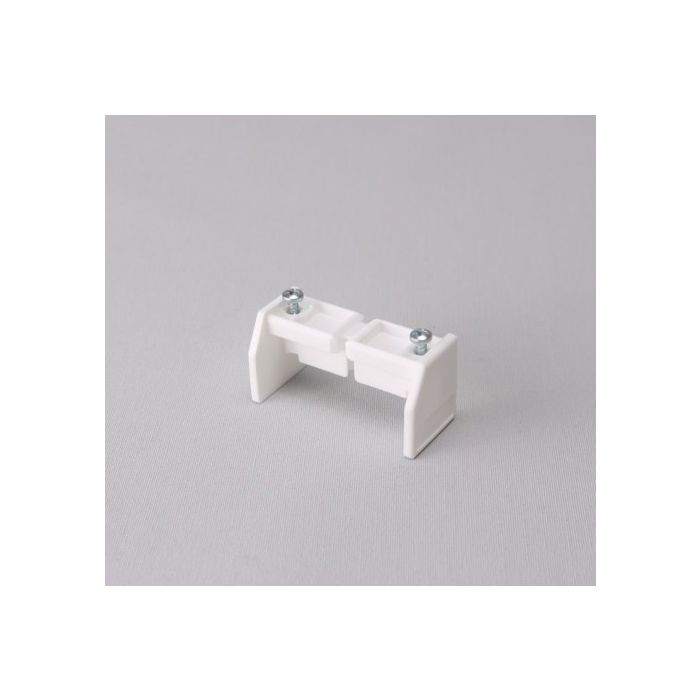

FREEModel 64 Curtain Track End Caps (Pair)
A pair of end caps designed to finish and close off the ends of our Model 64 curtain track. Used on contract installations to give a neat, complete track run and help keep fittings aligned at the track ends.
Made for Model 64
Accessory for our Model 64 track system
Clean end finish
Closes off the track run neatly
Supplied as a pair
One pair to finish both track ends
Contract-ready
Suitable for commercial track installations
Specifier-friendly
Clear component for schedules and tenders
System match
Complements Model 64 runners and wave options
Expectation setting: This is a track accessory (end caps), not a curtain track, runner, or bracket set. It does not affect light control or blackout performance.
Model 64 curtain track end caps for a finished installation
These end caps are supplied as a pair and are intended to be used with our Model 64 curtain track. They provide a tidy, professional finish at the ends of the track run and are commonly specified for contract fit-outs where clean detailing and consistent components matter.
If you are ordering a Model 64 track system for hand-drawn or wave headings, adding the correct end caps helps complete the installation in a straightforward, specifiable way.
Certification, compliance information and any available technical documents are provided in the Spec tab where applicable.
Where this fits in our range
This is a finishing component within the Model 64 curtain track system. Choose it when you need the correct end detail to match Model 64 hand-drawn roller runners or Model 64 wave track configurations.
Related Model 64 products
Best suited for contract track installations
Typically specified by fit-out teams, installers and facilities teams when completing Model 64 curtain track runs in contract environments. Commonly used anywhere a consistent, maintainable track system is required.
Best suited for
- • New Model 64 track installations requiring a neat end finish
- • Replacement end caps on existing Model 64 runs (maintenance work)
- • Projects specifying Model 64 hand-drawn roller runners or Model 64 wave systems
Procurement note
For specification-critical work, confirm the exact Model 64 track variant in use on site and order accessories to match. Any supporting documents are provided in the Spec tab where applicable.
Technical specifications
| Product | End caps (pair) for Model 64 curtain track |
| Compatibility | Model 64 curtain track system |
| Documents | Any available certificates, drawings and guidance are provided in the Spec tab |
If you are matching to an existing installation, check the track model before ordering. For project documentation and any supporting information, refer to the Spec tab.
| Delivery | 7 Working Day Delivery |
|---|---|
| Flame Retardant | No |
How to Install Curtain Rails & Blinds into Plaster Board
How to Measure for a Ceiling-Fixed Curtain Track?
How to Measure for a Wall-Fixed Curtain Track?
How to Measure for a Recess Fitted Blind
Customer Product Reviews
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
